Cable Accessories & Components on Powermatic Associates

Actuator and Sensor Accessory, Closure cap, , Female M12 eurofast Closure Cap

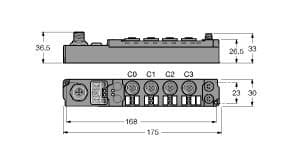

Turck SDNL-0404D-0003S is a remote I/O controller within the piconet series, designed with auxiliary power for DeviceNet. It functions as a Piconet coupling remote digital mixed input and output module. The unit is encased in a fiberglass reinforced housing with metal connectors, ensuring durability. It features 8 x 3-pin M8 female connectors for I.O. ports, 1 x 5-pin M12 male connector for FIELDBUS, and 2 x 4-pin M8 connectors (male + female) for voltage supply. The supply voltage requirement is 20-29Vdc, with 24Vdc nominal. Designed for surface mounting, it operates within an ambient air temperature range of 0 to +55 °C and offers a degree of protection rated at IP67. The device measures 30 mm in width, 175 mm in height, and 26.5 mm in depth. It supports the DeviceNet communication protocol at speeds of 125/250/500kbps, includes 4 x digital outputs (20-29Vdc / 500mA), and 4 x digital inputs (PNP / 20-29Vdc / 3ms input filter).

SAB LNG-3/4 Gray Plastic Hexagonal Locknut with NPT 3/4" threads

Turck JBBS-57-E623 is a DeviceNet passive junction box within the JBBS series, featuring a black fiberglass housing and stainless steel connectors. It is equipped with 6 x 5-pin M12 female connectors for drop connections and 1 x 5-pin 7/8" male connector alongside 1 x 5-pin 7/8" female connector for bus in and out connections, facilitating a daisy-chain configuration. This junction box operates on a supply voltage of 11-30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed for surface or wall mounting and can operate within an ambient air temperature range of -40 to +70°C. The JBBS-57-E623 offers a degree of protection rated at IP67 and supports a connection capacity of 6 ports for drop connections plus 1 bus in and out.

Turck JBBS-57VM-E813 is a DeviceNet passive junction box within the JBBS series, featuring voltage monitoring protection. This junction box has a blue/gray cast aluminum housing with stainless steel connectors, ensuring durability. It is equipped with 8 x 5-pin M12 female connectors for device connections and 1 x 5-pin 7/8" male connector alongside 1 x 5-pin 7/8" female connector for bus in and out connections, facilitating a daisy-chain configuration. The JBBS-57VM-E813 operates on a supply voltage of 11-30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed for surface or wall mounting and can operate in ambient air temperatures ranging from -25 to +70°C. This junction box is IP67 rated, indicating a high degree of protection against dust and water ingress. Its connection capacity includes 8 ports for device drops plus 1 bus in and out, supporting efficient network configurations.

piconet stand-alone module for DeviceNet, 8 Digital Outputs 2 A (4 A in Total), Configuration interface, Parameterizable functions, Supported via I/O‐ASSISTANT 2, Direct connection to the fieldbus, Fibre-glass reinforced housing, Shock and vibration tested, Encapsulated module electronics, Metal connector, Degree of protection IP67

piconet stand-alone module for DeviceNet, 4 Digital PNP Inputs Filter 3 ms, 4 Digital Outputs 0.5 A, , Configuration interface, Parameterizable functions, Supported via I/O‐ASSISTANT 2, Direct connection to the fieldbus, Fibre-glass reinforced housing, Shock and vibration tested, Encapsulated module electronics, Metal connector, Degree of protection IP67

piconet Coupling Module for DeviceNet, 4 Digital PNP Inputs Filter 3 ms, 4 Digital Outputs 0.5 A, , Configuration interface, Configurable functions, Supported via I/O‐ASSISTANT 2, Direct connection to the fieldbus, Direct connection to the IP link, Fibre-glass reinforced housing, Encapsulated module electronics, Metal connector, Degree of protection IP67

piconet Stand-alone Module for CANopen, 8 Digital Outputs 2 A (4 A in Total), Configuration interface, Parameterizable functions, Supported via I/O‐ASSISTANT 2, Direct connection to the fieldbus, Fibre-glass reinforced housing, Shock and vibration tested, Encapsulated module electronics, Metal connector, Degree of protection IP67

piconet Stand-alone Module for CANopen, 8 Digital Outputs 2 A (12 A in Total), Configuration interface, Parameterizable functions, Supported via I/O‐ASSISTANT 2, Direct connection to the fieldbus, Fibre-glass reinforced housing, Shock and vibration tested, Encapsulated module electronics, Metal connector, Degree of protection IP67
