TP-206A-CF-H1141-L500 Turck Temperature Sensors

Turck TP-206A-CF-H1141-L500 TP-206A-CF-H1141-L500 Temperature Detection, Probe
Turck

Part#:TP-206A-CF-H1141-L500

Manufacturer:Turck

Alt. Part#:9910491

Product Lifecycle:Active

Get a quick Quote!

TP-206A-CF-H1141-L500 Temperature Detection, Probe

About the manufacturer: Turck is one of the manufacturers that offers Temperature Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the TP-206A-CF-H1141-L500 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    90 g
  • Protection class
    IP67
  • Measuring range
    -50…500 °C
  • Ambient temperature
    -40…+85 °C
  • Process connection
    For compression fittings, thermowell or direct mounting
  • Design
    Temperature probe
  • Electrical connection
    Connector, M12 × 1
  • Housing material
    Stainless steel, 1.4404 (AISI 316L)
  • Immersion depth (L)
    500  mm
  • Electrical output
    Resistance
  • Detection type
    medium contact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TP-206A-CF-H1141-L500 Description

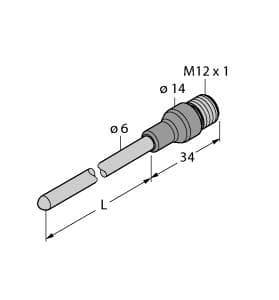

Turck TP-206A-CF-H1141-L500 is a sensor designed for temperature measurement within the TP series, featuring a design suitable for compression fitting or thermowell applications. This instrumentation temperature probe or thermosensor is equipped with an RTD Pt100 Class A element. It is constructed from 1.4404 (316L) stainless steel for the probe and plastic for the housing, ensuring durability and compatibility with various environments. The probe has a diameter of 6mm and a length of 500mm. It comes pre-equipped with a 4-pin M12 Eurofast QD male connector and a 6mm diameter compression fitting connection port. The sensor operates effectively in ambient air temperatures ranging from -40°C to +85°C and offers a degree of protection rated at IP67. It is mineral insulated for enhanced chemical resistance and can withstand pressures up to 100bar (1450psi). The temperature measurement range of this sensor is from +30°C to +500°C. It includes protection functions against reverse polarity and has a response time between 6 to 15 seconds.

Related documents TP-206A-CF-H1141-L500 Specs

TP-206A-CF-H1141-L500 English.pdf
