RK 12T-2 Turck Cordsets

Name: RK 12T-2
Brand: Turck
Price: 55.1 USD
Availability: InStock

Turck RK 12T-2 RK 12T-2 Actuator and Sensor Cordset, Connection Cable

Part#:RK 12T-2

Manufacturer:Turck

Alt. Part#:U0911-14

Product Lifecycle:Active

In-stock parts: 1

Sep 28, 2024

RK 12T-2 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RK 12T-2 Turck price in the box on the right side or send a quick quote.

Product Details

Cable length (L)
2.0 m
Approvals
UL 2238, CSA C22.2 No. 182.3, CE, RoHS
Cable Jacket Color
Gray
Number of Conductors
12
Cable Jacket Material
PVC
Material coupling/housing A
Brass
Connector A - Number of Pins
12
Current
2 A
Voltage
75 V
Connector A - Style
Straight, Female
Application
Actuator and Sensor
Connector A
M12 × 1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RK 12T-2 Description

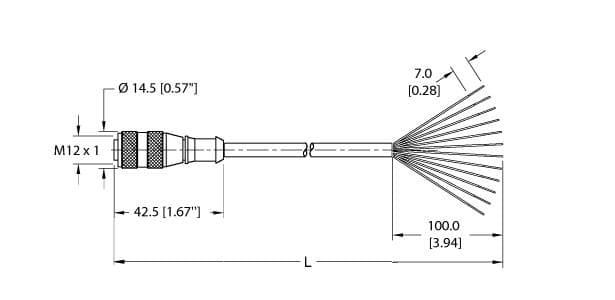

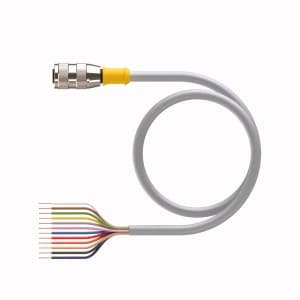

Turck RK 12T-2 is a cable designed for single-ended mating, featuring a 12-pin M12 eurofast female connector with T-barb fitting to bare end flying leads. It has a gray sheath made from PVC with a nickel-plated brass coupling nut. The cable is 2 meters (approximately 6 feet) in length and has a diameter of 6.3mm for the outer sheath. It is rated for a current of 2A and a voltage of 75Vac/75Vdc. The cable's cross-section consists of 12 wires at #24AWG. It offers a high degree of protection with ratings of IP68, IP69K, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P, ensuring its suitability for various industrial environments.

$55.10

Stock:

Select Qty:

$55.10

$55.10 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us
