PT200PSIG-2003-I2-H1144 Turck Pressure Sensors

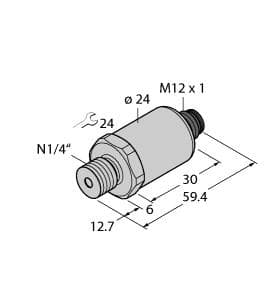

Turck PT200PSIG-2003-I2-H1144 PT200PSIG-2003-I2-H1144 Pressure Transmitter, With Current Output (2-Wire)
Turck

Part#:PT200PSIG-2003-I2-H1144

Manufacturer:Turck

Alt. Part#:100002141

Product Lifecycle:Active

Get a quick Quote!

PT200PSIG-2003-I2-H1144 Pressure Transmitter, With Current Output (2-Wire)

About the manufacturer: Turck is one of the manufacturers that offers Pressure Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PT200PSIG-2003-I2-H1144 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    93 g
  • Protection class
    IP67
  • Ambient temperature
    -30…+85 °C
  • Medium temperature
    -40…+135 °C
  • Pressure transducer material
    Stainless steel 1.4016 (AISI 430)
  • Electrical output
    Current output (2-wire)
  • Housing material
    Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyacrylamide 50 % GF UL 94 V-0
  • Relative pressure psi
    0…200 psi rel.
  • Operating voltage
    7…33 VDC
  • Current output
    4…20 mA
  • Electrical connection
    Connector, M12 × 1
  • Relative pressure bar
    0…13.79 bar rel.
  • Pressure type
    Relative pressure
  • Design
    Without display
  • Process connection
    1/4” NPT-18 male thread

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PT200PSIG-2003-I2-H1144 Description

Turck PT200PSIG-2003-I2-H1144 is a sensor designed for instrumentation relative pressure measurement and transmission. It operates within an ambient air temperature range of -25°C to +85°C and is ATEX compliant, ensuring suitability for explosive environments. This model features a pre-equipped 4-pin M12 Eurofast QD male connector and a 1/4" NPT threaded male process port for easy installation. As part of the PT2000 series, it offers an IP67 degree of protection against dust and water ingress. The sensor operates on a supply voltage of 7-33VDC, with 12VDC and 24VDC as nominal values. It has a cylindrical body made from 1.4404 (316L) stainless steel for both the housing and the pressure transducer, ensuring durability and resistance to corrosion. The sensor can measure pressures from 0 to +200psig and is capable of handling fluid medium temperatures ranging from -40°C to +125°C. It provides a single analog output (4-20mA) and has a current consumption of 23mA.

Related documents PT200PSIG-2003-I2-H1144 Specs

PT200PSIG-2003-I2-H1144 English.pdf
