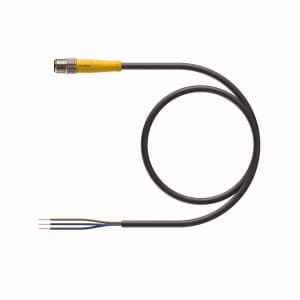

PSG 3M-1/S90 Turck Cordsets
Part#:PSG 3M-1/S90
Manufacturer:Turck
Alt. Part#:U0135-51
Product Lifecycle:Active
In-stock parts: 3
Sep 28, 2024
PSG 3M-1/S90 Actuator and Sensor Cordset, Connection Cable
About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the PSG 3M-1/S90 Turck price in the box on the right side or send a quick quote.
Product Details
- Cable length (L) 1.0 m
- Approvals UL Listed, CSA, CE, RoHS
- Cable Jacket Color Black
- Cable Jacket Material TPU
- Connector A - Number of Pins 3
- Connector A M8 × 1
- Connector A - Style Straight, Male
- Voltage 125 V
- Current 4 A
- Application Actuator and Sensor
- Material coupling/housing A Brass
- Number of Conductors 3
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
PSG 3M-1/S90 Description
Turck PSG 3M-1/S90 is a single-ended mating cable/cordset designed with a black moulded plug body. It features a 4.2mm cable sheath outer diameter and is equipped with a 3-pin M8 picofast male connector (M8x1 threaded coupling nut) with bare end flying leads. This part falls under the M8 picofast to bare leads sub-range and offers a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P. The coupling nut is made from nickel-plated brass, and the cable has a PVC jacket in black. It has a length of 1 meter (approximately 3 feet), operates with a rated current of 4A, and can handle a rated voltage of 125Vac. The cable's cross-section is 3 x #24AWG.
Related documents PSG 3M-1/S90 Specs
This item can ship within 24h!
Manufacturer warranty
$18.40
Stock:
3
Select Qty:
$18.40
$18.40 each
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
