IM31-22EX-U Turck Signal Isolators
Part#:IM31-22EX-U
Manufacturer:Turck
Alt. Part#:7506326
Product Lifecycle:Active
Get a quick Quote!
IM31-22EX-U Analog signal isolator, 2-channel
About the manufacturer: Turck is one of the manufacturers that offers Signal Isolators that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the IM31-22EX-U Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 147 g
- Ex version yes
- Device type Analog signal isolator - Input field side
- Protection class IP20
- Product series IM
- Nominal voltage Wide voltage range
- Signal type Analog input
- Approvals ATEX, IECEx, UL,
c FMus , TR CU, NEPSI
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
IM31-22EX-U Description

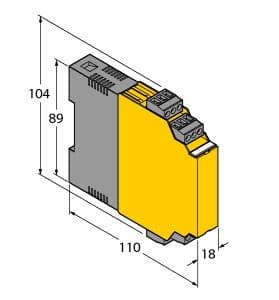

Turck IM31-22Ex-U is an interface unit belonging to the IM series, designed as a 2-channel ATEX compliant analog input signal isolator. It features a polycarbonate/ABS housing and utilizes 4 x 3-pin removable terminal screw connections for connectivity. This unit is equipped with protection functions against short-circuit and reverse polarity. It supports a wide range of supply voltages, accepting 20-250Vdc (with 24Vdc, 110Vdc, 120Vdc, and 220Vdc nominal) and 20-250Vac (with 24Vac, 120Vac, 220Vac, and 240Vac nominal). Designed for DIN rail mounting, it measures 104 mm in height, 18 mm in width, and 110 mm in depth. The IM31-22Ex-U operates within an ambient air temperature range of -25 to +70°C and is rated with an IP20 degree of protection. It offers 2 x analog outputs (2-10Vdc) and accepts 2 x analog inputs (4-20mA / 2-10Vdc).
Related documents IM31-22EX-U Specs
