FCI-D10A4P-ARX-H1140 Turck Flow Sensors

Turck FCI-D10A4P-ARX-H1140 FCI-D10A4P-ARX-H1140 Flow Monitoring, Inline Sensor with Integrated Processor
Turck

Part#:FCI-D10A4P-ARX-H1140

Manufacturer:Turck

Alt. Part#:6870644

Product Lifecycle:Active

Get a quick Quote!

FCI-D10A4P-ARX-H1140 Flow Monitoring, Inline Sensor with Integrated Processor

About the manufacturer: Turck is one of the manufacturers that offers Flow Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the FCI-D10A4P-ARX-H1140 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    311 g
  • Protection class
    IP67
  • Electrical connection
    Connector, M12 × 1
  • Ambient temperature
    0…+60 °C
  • Housing material
    Plastic, PBT
  • Design
    Inline
  • Medium temperature
    0…+80 °C
  • Process connection
    G 1/4”
  • Operating voltage
    21.6…26.4 VDC
  • Output function
    NO contact, Relay output
  • Sensor material
    Stainless steel
  • Operating principle
    Calorimetric
  • Function
    Flow monitoring
  • Medium
    liquids

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

FCI-D10A4P-ARX-H1140 Description

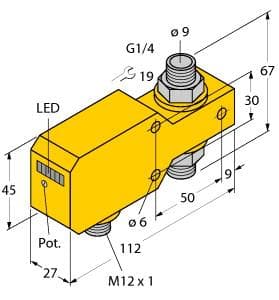

Turck FCI-D10A4P-ARX-H1140 is a sensor designed for flow monitoring with a PBT (Polybutylene Terephthalate) housing, stainless steel 316Ti tubing, and a stainless steel 303 connector. It operates within an ambient air temperature range of 0°C to +60°C and offers a degree of protection rated at IP67. The sensor has a response time of 5-15 seconds during startup and 500ms to 3 seconds during normal operation. It features 1 x digital output (NO Normally Open relay dry contact) and has a rectangular body shape. The control circuit is rated for currents of 1 A at both 30Vdc and 36Vdc. Designed for water flow monitoring, it measures flows from 1 to 6L/min LPM. This part of the FCI series functions as an instrumentation inline flow monitor sensor/switch and comes pre-equipped with a 4-pin M12 Eurofast QD male connector and a G1/4" with 1/4" BSPP threaded male process port with a 10mm inline diameter. It can withstand pressures up to 20bar (290psi) and is suitable for use with media temperatures ranging from 0 to +80°C. The supply voltage required for operation is 21.6-26.4Vdc, with a nominal voltage of 24Vdc.

Related documents FCI-D10A4P-ARX-H1140 Specs

FCI-D10A4P-ARX-H1140 English.pdf

Manufacturer warranty
