BI2-EG08K-RN6X-H1341 Turck Inductive Sensors

BI2-EG08K-RN6X-H1341 on Powermatic Associates
Turck

Part#:BI2-EG08K-RN6X-H1341

Manufacturer:Turck

Alt. Part#:4669411

Product Lifecycle:Active

Get a quick Quote!

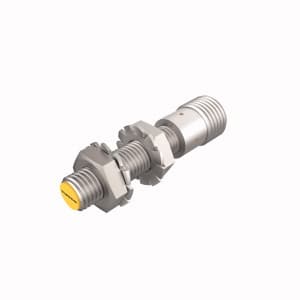

BI2-EG08K-RN6X-H1341 Inductive Sensor, With Increased Switching Distance

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BI2-EG08K-RN6X-H1341 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    18 g
  • RoHS
    Yes
  • Country Of Origin
    LKA
  • HTS Code
    8536507000
  • Country of Origin
    Sri Lanka
  • Operating Voltage
    10 volts, 30 volts
  • Ambient Temperature
    -25 degrees celsius, 70 degrees celsius
  • Weight
    18 grams
  • Protection class
    IP67
  • Rated switching distance
    2 mm
  • Special features
    Sn +
  • Electrical connection
    Connector, M12 × 1
  • Housing material
    Stainless steel, 1.4305 (AISI 303)
  • Mounting
    Flush
  • Ambient temperature
    -25…+70 °C
  • Operating voltage
    10…30 VDC
  • Construction size
    M8 x 1
  • Output function
    NC contact, NPN
  • Design
    Threaded barrel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BI2-EG08K-RN6X-H1341 Description

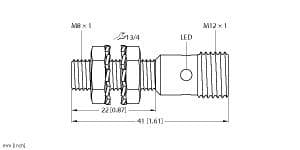

Inductive Sensor, With Increased Switching Distance, Rated switching distance 2 mm, Flush, M8 × 1 threaded barrel, Stainless steel, 1.4305 (AISI 303), Large sensing range, DC 3-wire, 10…30 VDC, NC contact, NPN output, M12 x 1 male connector

Related documents BI2-EG08K-RN6X-H1341 Specs

BI2-EG08K-RN6X-H1341 English-1630965252728.pdf
