BI1-Q6.5-AN6 Turck Inductive Sensors

Turck BI1-Q6.5-AN6 BI1-Q6.5-AN6 Inductive Sensor
Turck

Part#:BI1-Q6.5-AN6

Manufacturer:Turck

Alt. Part#:4613420

Product Lifecycle:Active

Get a quick Quote!

BI1-Q6.5-AN6 Inductive Sensor

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BI1-Q6.5-AN6 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    16 g
  • Ambient temperature
    -25…+70 °C
  • Output function
    NO contact, NPN
  • Protection class
    IP67
  • Mounting
    Flush
  • Operating voltage
    10…30 VDC
  • Cable length (L)
    2.0  m
  • Electrical connection
    Cable
  • Housing material
    Plastic, PP GR-20
  • Design
    Rectangular

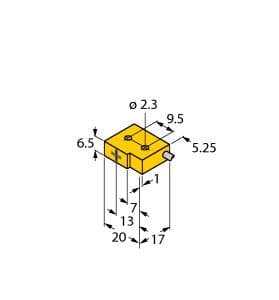

  • Construction size
    20.2 x 17.2 x 6.5 mm, Q6.5
  • Rated switching distance
    1 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BI1-Q6.5-AN6 Description

Turck BI1-Q6.5-AN6 is an inductive proximity sensor belonging to the BI...-Q6.5 series, designed as an embeddable special version without an LED indicator. It operates with a supply voltage range of 10-30Vdc, including nominal values of 12Vdc and 24Vdc, and features a housing and sensing face made of PP-GR 20 (Polypropylene), with a PUR (Polyurethane) cable jacket. This sensor is connected via a pre-wired 2m / 6.5ft PUR cable terminated with bare end flying leads and is characterized by a 6.5mm thick rectangular body. It offers a degree of protection rated at IP67 and can operate within an ambient air temperature range of -25°C to +70°C. The BI1-Q6.5-AN6 has a maximum switching frequency of 2kHz / 2000Hz, a digital output of 1 x digital output (10-30Vdc; NPN; 150mA max.), and a no-load current consumption of 15mA. Its sensing distance is 1mm, and it includes protection functions against short-circuit (pulsed), overload, and reverse polarity. The operating mode for this sensor is NO (Normally Open).

Related documents BI1-Q6.5-AN6 Specs

BI1-Q6.5-AN6 English.pdf
