BC10-QF5.5-AP6X2 Turck Capacitive Sensors
Part#:BC10-QF5.5-AP6X2
Manufacturer:Turck
Alt. Part#:2620117
Product Lifecycle:Active
Get a quick Quote!
BC10-QF5.5-AP6X2 Capacitive Sensor
About the manufacturer: Turck is one of the manufacturers that offers Capacitive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the BC10-QF5.5-AP6X2 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 38 g
- Ambient temperature -25…+70 °C
- Protection class IP67
- Approvals cULus
- Housing material Plastic, PP
- Cable length (L) 2.0 m
- Output function NO contact, PNP
- Electrical connection Cable
- Operating voltage 10…30 VDC
- Design Rectangular
- Rated switching distance 10 mm

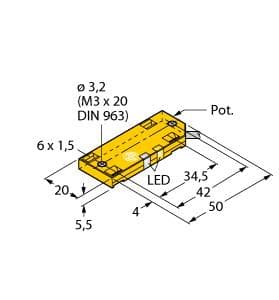

- Construction size 54 x 20.3 x 5.5 mm, QF5.5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
BC10-QF5.5-AP6X2 Description
Turck BC10-QF5.5-AP6X2 is a capacitive proximity sensor belonging to the BC...-QF5.5 series, designed with a Qpak housing for top-sensing and embeddable applications. It operates on a supply voltage of 10-30Vdc, with nominal values of 12Vdc and 24Vdc. The sensor is constructed with a PP (Polypropylene) housing and sensing face, and features a PUR (Polyurethane) cable jacket. It comes pre-wired with a 2m / 6.5ft PUR cable terminated with bare end flying leads. The sensor has a 5.5mm thick rectangular body and offers an IP67 degree of protection. It supports a maximum switching frequency of 100Hz and can operate within an ambient air temperature range of -25°C to +70°C. The sensor includes 1 x digital output (10-30Vdc; PNP; 200mA max.), with a no-load current consumption of 15mA and a sensing distance of 10mm. It is equipped with protection functions against short-circuit (pulsed), overload, and reverse polarity, and has a control circuit rated current of 200mA / 0.2 A. The operating mode of the sensor is NO (Normally Open).
Related documents BC10-QF5.5-AP6X2 Specs
