62341004 SAB Halogen Free Cables
Part#:62341004
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

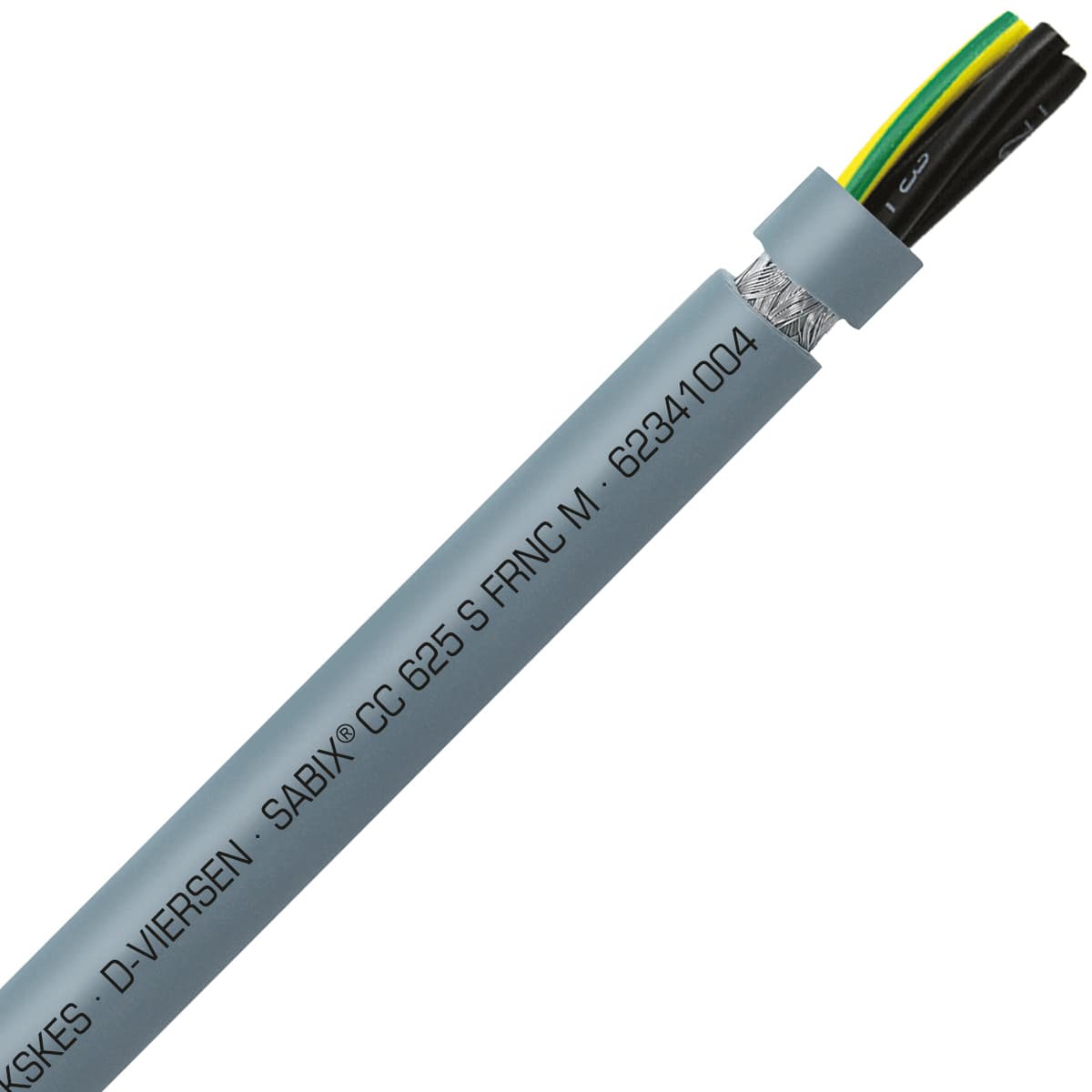

SABIX CC 625 S FRNC M - 10 AWG/4c, shielded halogen-free flame retardant flexible control cable, UL, CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers Halogen Free Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 62341004 SAB price in the box on the right side or send a quick quote.
Product Details
- Gauge 10 AWG
- Shielded Yes
- Chemical Resistant NO
- Temperature range -40°C to +90°C
- Oil Resistant No
- Movement Type Stationary/Flexible
- Stranding type bare copper strands, class 5
- CE Certification YES
- UV Resistant NO
- Submersible NO
- Number of conductors 4
- UOM ft
- Application Control, Power
- Insulation type FRNC
- Voltage 600
- Approvals UR AWM, CSA AWM, CE, EAC, RoHS
- CSA Certification YES
- Halogen Free YES
- Direct Burial NO
- Cable configuration 10 AWG (≈ 78/28)/4c
- Color Gray
- Outside diameter (OD) 0.535 in
- UL Certification YES
- Weight 110.22 g
- RoHS YES
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
62341004 Description
SAB 62341004 Halogen Free Cable is part of SABIX® CC 625 S FRNC M product family, and is designed for Control, Power applications. This cable is 10 AWG with 4 conductors, and shielded 10 AWG (≈ 78/28)/4c cable configuration. Featuring Gray color jacket, FRNC insulation, and bare copper strands, class 5 stranding. It has 0.535 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +90°C temperature range, it is Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
