61562790 SAB Halogen Free Cables
Part#:61562790
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

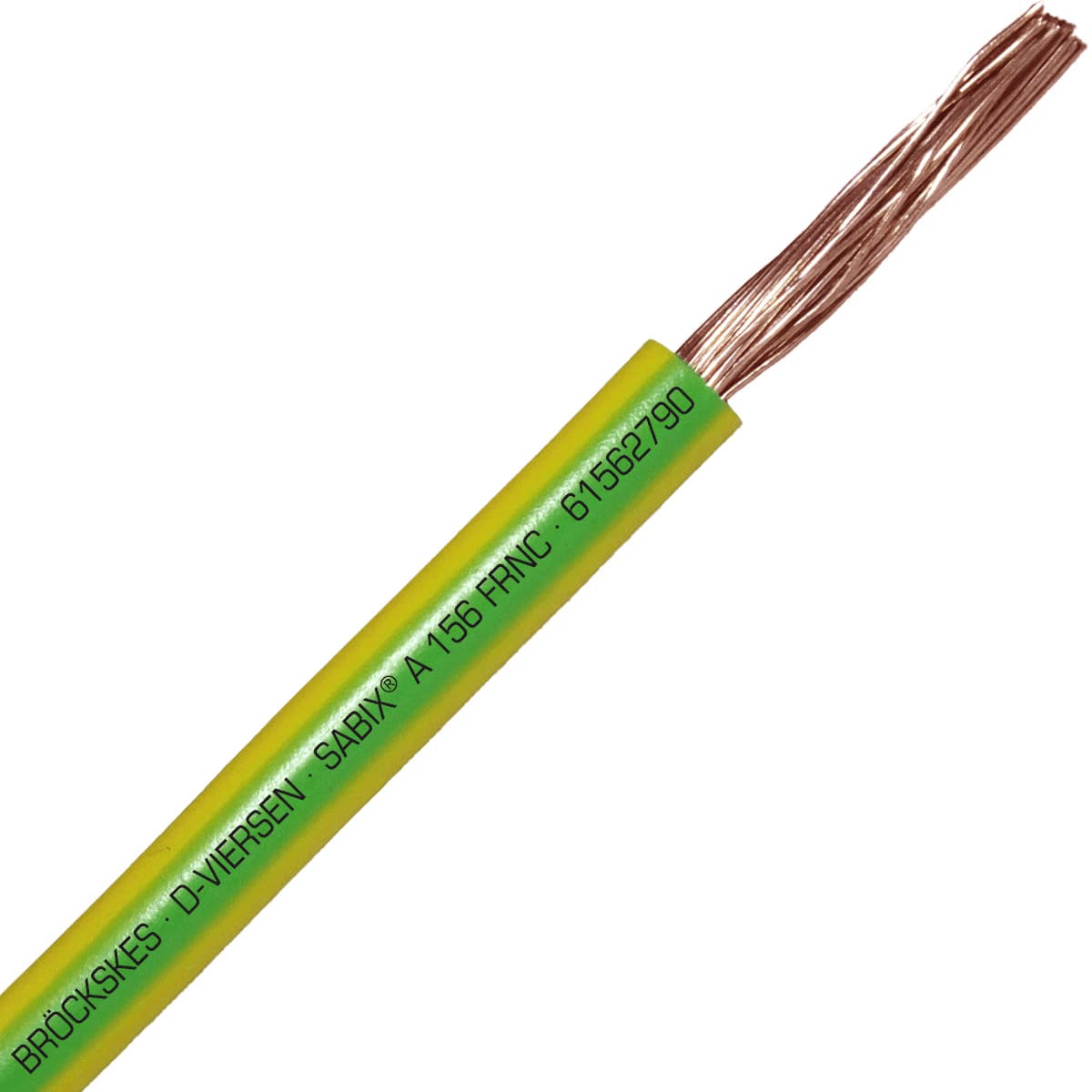

SABIX A 156 FRNC - 4 AWG/1c, flame retardant halogen-free 750V green/yellow hook-up wire, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers Halogen Free Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 61562790 SAB price in the box on the right side or send a quick quote.
Product Details
- Voltage 750
- CSA Certification NO
- UV Resistant YES
- Application Control, Power
- Stranding type bare copper strands, class 5
- RoHS YES
- CE Certification YES
- Oil Resistant No
- Movement Type Stationary/Flexible
- Shielded No
- Approvals CE, EAC, RoHS
- UOM ft
- Color Green/Yellow
- Outside diameter (OD) 0.390 in
- UL Certification NO
- Weight 88.90 g
- Submersible NO
- Cable configuration 4 AWG/1c
- Halogen Free YES
- Gauge 4 AWG
- Number of conductors 1
- Temperature range -40°C to +90°C
- Chemical Resistant NO
- Direct Burial NO
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
61562790 Description
SAB 61562790 Halogen Free Cable is part of SABIX® A 156 FRNC product family, and is designed for Control, Power applications. This cable is 4 AWG with 1 conductors, and 4 AWG/1c cable configuration. Featuring Green/Yellow color jacket, and bare copper strands, class 5 stranding. It has 0.39 in OD, constructed to support Stationary/Flexible movement type, and rated for 750 volts. This Control, Power cable can operate in -40°C to +90°C temperature range, it is UV resistand, Halogen free, and has following approvals: CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
