61560890 SAB Halogen Free Cables
Part#:61560890
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

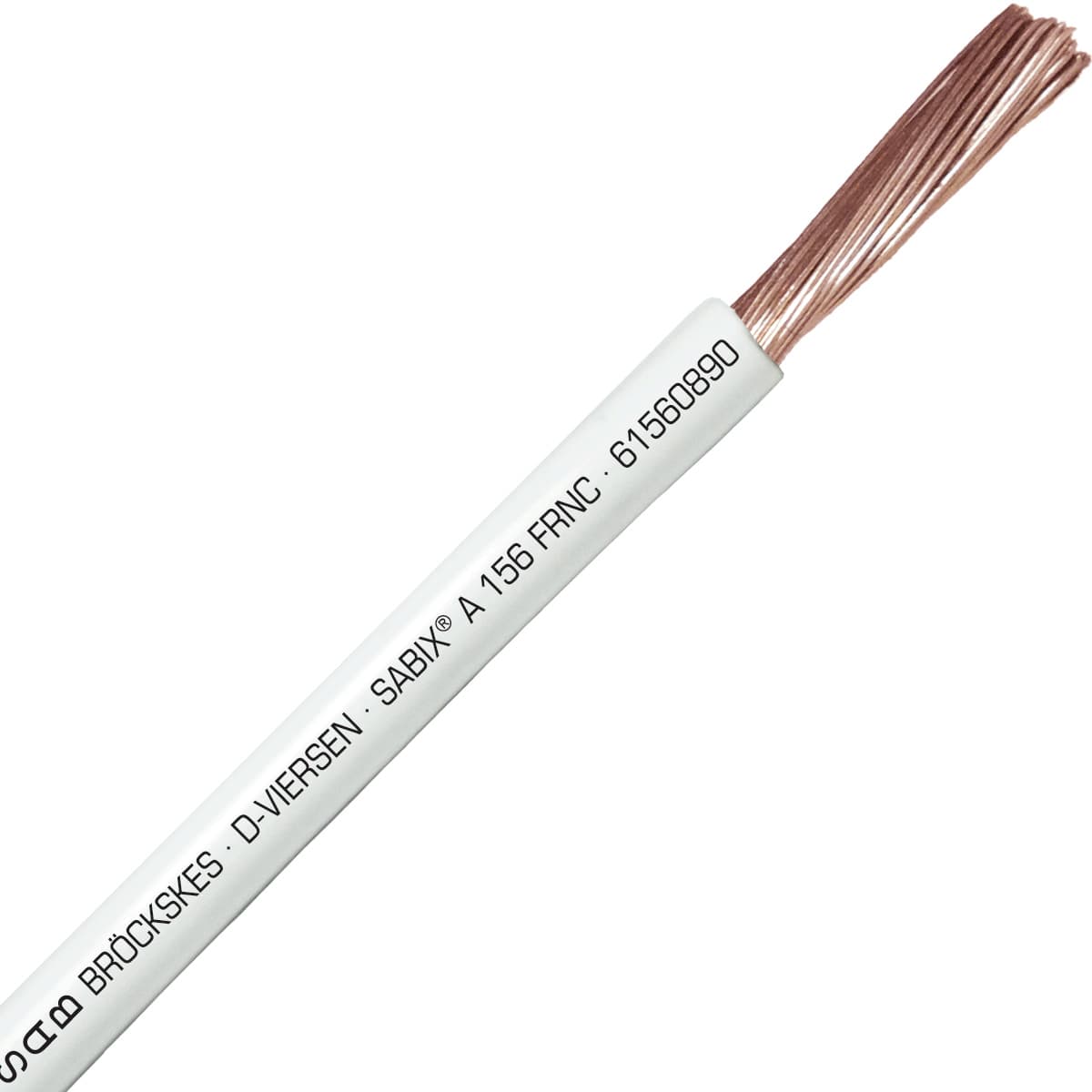

SABIX A 156 FRNC - 4 AWG/1c, flame retardant halogen-free 750V white hook-up wire, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers Halogen Free Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 61560890 SAB price in the box on the right side or send a quick quote.
Product Details
- RoHS YES
- UOM ft
- Oil Resistant No
- Gauge 4 AWG
- Shielded No
- Temperature range -40°C to +90°C
- UV Resistant YES
- CSA Certification NO
- Weight 88.90 g
- Direct Burial NO
- Number of conductors 1
- Voltage 750
- Halogen Free YES
- Submersible NO
- Cable configuration 4 AWG/1c
- Approvals CE, EAC, RoHS
- Color White
- Chemical Resistant NO
- Movement Type Stationary/Flexible
- Application Control, Power
- Stranding type bare copper strands, class 5
- Outside diameter (OD) 0.390 in
- UL Certification NO
- CE Certification YES
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
61560890 Description
SAB 61560890 Halogen Free Cable is part of SABIX® A 156 FRNC product family, and is designed for Control, Power applications. This cable is 4 AWG with 1 conductors, and 4 AWG/1c cable configuration. Featuring White color jacket, and bare copper strands, class 5 stranding. It has 0.39 in OD, constructed to support Stationary/Flexible movement type, and rated for 750 volts. This Control, Power cable can operate in -40°C to +90°C temperature range, it is UV resistand, Halogen free, and has following approvals: CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
Related documents 61560890 Specs
