60.12.9.024.5000 Finder Control Relays

60.12.9.024.5000 on Powermatic Associates
Finder

Part#:60.12.9.024.5000

Manufacturer:Finder

Product Lifecycle:Active

Get a quick Quote!

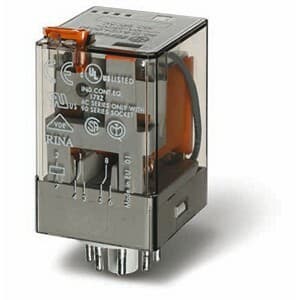

General purpose plug-in electromechanical relay (octal; 8-pins) - Finder (60 series) - Control coil voltage 24Vdc - 2 poles (2P) - 2C/O / DPDT (Double Pole Double Throw) contact - Rated current 10A (250Vac; AC-1) / 10A (30Vdc; DC-1) - Rated switching powe

About the manufacturer: Finder is one of the manufacturers that offers Control Relays that you can order at Powermatic Associates site. Established in 1993, Finder Relays, Inc., a subsidiary of Finder S.p.A., distributes the Finder product line in the United States. Situated north of Atlanta, Georgia, our facility boasts a robust infrastructure, enabling us to serve customers nationwide effectively.

Check out the 60.12.9.024.5000 Finder price in the box on the right side or send a quick quote.

Product Details

  • Main function
    Relay
  • Rated voltage (AC)
    250Vac
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1) 1.3W
  • Mounting mode
    Plug-in (octal; 8-pins)
  • Mechanical durability (at no load)
    50 000 000 operations
  • Net Height (mm)
    66.7 mm
  • Primary brand
    Finder
  • Control Voltage (DC)
    24Vdc
  • Electrical durability (with load)
    200 000 operations
  • Net Width (mm)
    32.5 mm
  • Product series / family name
    60 series
  • Connection type
    Solder pin
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC CE EN 60664-1 EN 61000-4-5 EN 61810-1
  • Power consumption
    1.3 W
  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.4A (110Vdc; DC-1) 0.15A (220Vdc; DC-1)
  • Poles
    2 Pole(s)
  • Ambient air temperature for operation
    -40...+70 °C
  • Contacts coating
    AgNi+Au (Gold plated silver-nickel)
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Rated impulse voltage (Uimp)
    4 kV
  • Net Depth (mm)
    36.4 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 60.12.9.024.5000 Specs

60.12.9.024.5000 Finder - 60 Series - Catalogue.pdf
