55.34.8.120.5050 Finder Control Relays

55.34.8.120.5050 on Powermatic Associates
Finder

Part#:55.34.8.120.5050

Manufacturer:Finder

Product Lifecycle:Active

Get a quick Quote!

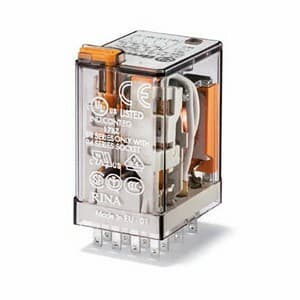

Finder 55.34.8.120.5050 is a relay with solder pin connection type, designed for a rated current of 7A at 250Vac (AC-1) and 7A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It supports a supply voltage of 4C/O or 4PDT (4 Pole Double Throw), with an ambient air temperature for operation at 350VA (230Vac, AC-15) and for storage at 1750VA (250Vac, AC-1). The rated voltage for AC operation is specified with a wide range of -40 to +85 degrees Celsius. It utilizes a communication protocol labeled 'C' and offers protection functions at 250Vac. The net depth of the part is 37.2 mm, with a control voltage (AC) of 4 kV and a mounting mode width of 27.7 mm. The rated active power is indicated as 4 Poles, with a power consumption width of 20.7 mm. The color is specified for a 120Vac (50Hz/60Hz) environment. It features plug-in residual current sensitivity, a number of Normally Closed (NC) circuits capable of 150,000 operations, and a length of AgNi+Au (Gold plated silver-nickel). The diameter supports up to 20,000,000 operations.

About the manufacturer: Finder is one of the manufacturers that offers Control Relays that you can order at Powermatic Associates site. Established in 1993, Finder Relays, Inc., a subsidiary of Finder S.p.A., distributes the Finder product line in the United States. Situated north of Atlanta, Georgia, our facility boasts a robust infrastructure, enabling us to serve customers nationwide effectively.

Check out the 55.34.8.120.5050 Finder price in the box on the right side or send a quick quote.

Product Details

  • Primary brand
    Finder
  • Control Voltage (AC)
    120Vac (50Hz/60Hz)
  • Mechanical durability (at no load)
    20 000 000 operations
  • Connection type
    Solder pin
  • Contacts type
    4C/O / 4PDT (4 Pole Double Throw)
  • Net Height (mm)
    37.2 mm
  • Rated voltage (AC)
    250Vac
  • Electrical durability (with load)
    150 000 operations
  • Net Depth (mm)
    20.7 mm
  • Main function
    Relay
  • Rated current
    7A (250Vac; AC-1) 7A (30Vdc; DC-1) 0.25A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Mounting mode
    Plug-in
  • Ambient air temperature for operation
    -40...+85 °C
  • Contacts coating
    AgNi+Au (Gold plated silver-nickel)
  • Product series / family name
    55 Series
  • Rated power
    350VA (230Vac; AC-15) 1750VA (250Vac; AC-1)
  • Poles
    4 Pole(s)
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Rated impulse voltage (Uimp)
    4 kV
  • Net Width (mm)
    27.7 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 55.34.8.120.5050 Specs

55.34.8.120.5050 Finder - 55 Series - Catalogue.pdf

Manufacturer warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
