55.34.8.110.5030 Finder Control Relays

55.34.8.110.5030 on Powermatic Associates
Finder

Part#:55.34.8.110.5030

Manufacturer:Finder

Product Lifecycle:Active

Get a quick Quote!

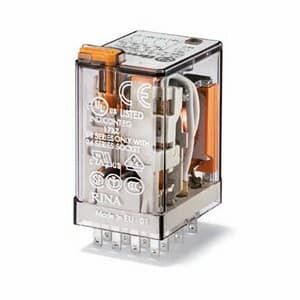

Finder 55.34.8.110.5030 is a relay with a solder pin connection type, designed for a rated current of 7A at 250Vac (AC-1), 7A at 30Vdc (DC-1), 0.25A at 110Vdc (DC-1), and 0.12A at 220Vdc (DC-1) with normally open (NO) auxiliary contacts. It supports a supply voltage of 4C/O / 4PDT (4 Pole Double Throw), operates within an ambient air temperature range of -40 to +85 degrees Celsius for both operation and storage, and has a rated voltage for AC operations at 250Vac. The relay features a control voltage of 4 kV, a mounting mode with dimensions of 27.7 mm, a rated active power of 4 poles, and a power consumption specified at 20.7 mm. Its color is defined for 110Vac (50Hz/60Hz) operations, with a plug-in residual current sensitivity. The number of normally closed (NC) circuits is designed for 150,000 operations, with a length of AgNi+Au (gold-plated silver-nickel) and a diameter supporting 20,000,000 operations. The net depth of the part is 37.2 mm.

About the manufacturer: Finder is one of the manufacturers that offers Control Relays that you can order at Powermatic Associates site. Established in 1993, Finder Relays, Inc., a subsidiary of Finder S.p.A., distributes the Finder product line in the United States. Situated north of Atlanta, Georgia, our facility boasts a robust infrastructure, enabling us to serve customers nationwide effectively.

Check out the 55.34.8.110.5030 Finder price in the box on the right side or send a quick quote.

Product Details

  • Main function
    Relay
  • Connection type
    Solder pin
  • Ambient air temperature for operation
    -40...+85 °C
  • Net Height (mm)
    37.2 mm
  • Rated voltage (AC)
    250Vac
  • Poles
    4 Pole(s)
  • Electrical durability (with load)
    150 000 operations
  • Net Width (mm)
    27.7 mm
  • Primary brand
    Finder
  • Control Voltage (AC)
    110Vac (50Hz/60Hz)
  • Rated impulse voltage (Uimp)
    4 kV
  • Rated current
    7A (250Vac; AC-1) 7A (30Vdc; DC-1) 0.25A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Mounting mode
    Plug-in
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Contacts coating
    AgNi+Au (Gold plated silver-nickel)
  • Net Depth (mm)
    20.7 mm
  • Product series / family name
    55 Series
  • Rated power
    350VA (230Vac; AC-15) 1750VA (250Vac; AC-1)
  • Contacts type
    4C/O / 4PDT (4 Pole Double Throw)
  • Mechanical durability (at no load)
    20 000 000 operations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 55.34.8.110.5030 Specs

55.34.8.110.5030 Finder - 55 Series - Catalogue.pdf
