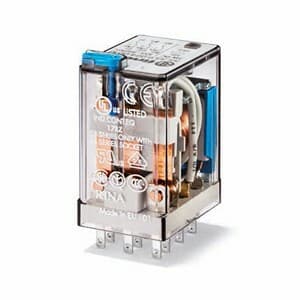

55.33.8.230.0010 Finder Control Relays

55.33.8.230.0010 on Powermatic Associates
Finder

Part#:55.33.8.230.0010

Manufacturer:Finder

Product Lifecycle:Active

Get a quick Quote!

Finder 55.33.8.230.0010 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 3C/O or 3PDT (3 Pole Double Throw), capable of handling ambient air temperatures from -40 to +85 degrees Celsius for both operation and storage. The relay features a rated voltage of 250Vac, a control voltage of 4 kV, and is designed for plug-in mounting with dimensions of 37.2mm in net depth, 27.7mm in mounting mode, and 20.7mm in power consumption. It supports a communication protocol of type C, offers protection functions at 250Vac, and is rated for 200,000 operations for Normally Closed (NC) circuits and 20,000,000 operations overall. The relay's contacts are made of AgNi (Silver Nickel), indicating its suitability for a wide range of applications.

About the manufacturer: Finder is one of the manufacturers that offers Control Relays that you can order at Powermatic Associates site. Established in 1993, Finder Relays, Inc., a subsidiary of Finder S.p.A., distributes the Finder product line in the United States. Situated north of Atlanta, Georgia, our facility boasts a robust infrastructure, enabling us to serve customers nationwide effectively.

Check out the 55.33.8.230.0010 Finder price in the box on the right side or send a quick quote.

Product Details

  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.25A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Poles
    3 Pole(s)
  • Control Voltage (AC)
    230Vac (50Hz/60Hz)
  • Product series / family name
    55 Series
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1)
  • Rated impulse voltage (Uimp)
    4 kV
  • Net Depth (mm)
    20.7 mm
  • Rated voltage (AC)
    250Vac
  • Contacts type
    3C/O / 3PDT (3 Pole Double Throw)
  • Mechanical durability (at no load)
    20 000 000 operations
  • Net Width (mm)
    27.7 mm
  • Main function
    Relay
  • Mounting mode
    Plug-in
  • Electrical durability (with load)
    200 000 operations
  • Contacts coating
    AgNi (Silver Nickel)
  • Primary brand
    Finder
  • Connection type
    Solder pin
  • Ambient air temperature for operation
    -40...+85 °C
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Net Height (mm)
    37.2 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 55.33.8.230.0010 Specs

55.33.8.230.0010 Finder - 55 Series - Catalogue.pdf
