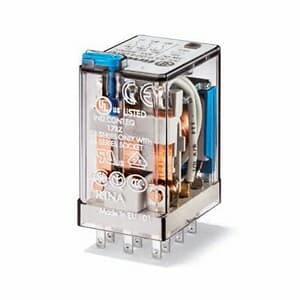

55.33.8.120.5030 Finder Control Relays

55.33.8.120.5030 on Powermatic Associates
Finder

Part#:55.33.8.120.5030

Manufacturer:Finder

Product Lifecycle:Active

Get a quick Quote!

Finder 55.33.8.120.5030 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower currents of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 3C/O or 3PDT (3 Pole Double Throw), capable of handling ambient air temperatures for operation and storage from -40 to +85 degrees Celsius. The relay supports a rated voltage of 250Vac, with a control voltage of 4 kV and a mounting mode dimension of 27.7 mm. Its rated active power is indicated for 3 poles, with a power consumption detailed at 20.7 mm. The color specification is for 120Vac (50Hz/60Hz) operations, and it features plug-in residual current sensitivity. The number of Normally Closed (NC) circuits is designed for 200,000 operations, with a length of AgNi+Au (Gold plated silver-nickel) and a diameter supporting 20,000,000 operations. The net depth of the part is 37.2 mm.

About the manufacturer: Finder is one of the manufacturers that offers Control Relays that you can order at Powermatic Associates site. Established in 1993, Finder Relays, Inc., a subsidiary of Finder S.p.A., distributes the Finder product line in the United States. Situated north of Atlanta, Georgia, our facility boasts a robust infrastructure, enabling us to serve customers nationwide effectively.

Check out the 55.33.8.120.5030 Finder price in the box on the right side or send a quick quote.

Product Details

  • Product series / family name
    55 Series
  • Mounting mode
    Plug-in
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Contacts coating
    AgNi+Au (Gold plated silver-nickel)
  • Rated voltage (AC)
    250Vac
  • Contacts type
    3C/O / 3PDT (3 Pole Double Throw)
  • Mechanical durability (at no load)
    20 000 000 operations
  • Net Depth (mm)
    20.7 mm
  • Main function
    Relay
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1)
  • Electrical durability (with load)
    200 000 operations
  • Net Height (mm)
    37.2 mm
  • Primary brand
    Finder
  • Connection type
    Solder pin
  • Control Voltage (AC)
    120Vac (50Hz/60Hz)
  • Rated impulse voltage (Uimp)
    4 kV
  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.25A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Poles
    3 Pole(s)
  • Ambient air temperature for operation
    -40...+85 °C
  • Net Width (mm)
    27.7 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 55.33.8.120.5030 Specs

55.33.8.120.5030 Finder - 55 Series - Catalogue.pdf
