40.52.9.048.0000 Finder Control Relays

40.52.9.048.0000 on Powermatic Associates
Finder

Part#:40.52.9.048.0000

Manufacturer:Finder

Product Lifecycle:Active

Get a quick Quote!

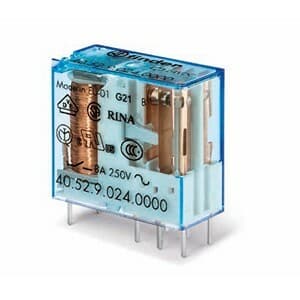

Finder 40.52.9.048.0000 is a relay with solder pin connection type, designed for a rated current of 8A at 250Vac (AC-1) and 8A at 30Vdc (DC-1), with lower current ratings of 0.6A at 110Vdc and 0.3A at 220Vdc for Normally Open (NO) auxiliary contacts. It supports a supply voltage of 2C/O / DPDT (Double Pole Double Throw), with an ambient air temperature for operation at 750VA (230Vac) and for storage at 2000VA (250Vac). The rated voltage for AC operation is specified for environments with temperatures ranging from -40 to +85 degrees Celsius. It utilizes a communication protocol labeled 'C', has a net width of 48Vdc, and offers protection functions at 250Vac. The control voltage is rated at 6 kV, with a mounting mode width of 29 mm and a rated active power for 2 poles. The power consumption is noted at 0.65 W, with a response time also at 0.65 W. It features a visual position indicator with 5.3mm pins pitch, is capable of 100,000 operations for Normally Closed (NC) circuits, and has a durability of 10,000,000 operations. The relay's dimensions include a net depth of 25 mm, a power consumption width of 12.4 mm, and it is designed for PCB and plug-in mounting. The material for the contacts is AgNi (Silver Nickel).

About the manufacturer: Finder is one of the manufacturers that offers Control Relays that you can order at Powermatic Associates site. Established in 1993, Finder Relays, Inc., a subsidiary of Finder S.p.A., distributes the Finder product line in the United States. Situated north of Atlanta, Georgia, our facility boasts a robust infrastructure, enabling us to serve customers nationwide effectively.

Check out the 40.52.9.048.0000 Finder price in the box on the right side or send a quick quote.

Product Details

  • Rated voltage (AC)
    250Vac
  • Mounting mode
    PCB Plug-in
  • Ambient air temperature for operation
    -40...+85 °C
  • Rated impulse voltage (Uimp)
    6 kV
  • Net Depth (mm)
    12.4 mm
  • Primary brand
    Finder
  • Distance
    5.3mm pins pitch
  • Poles
    2 Pole(s)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60335-1 EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1
  • Electrical durability (with load)
    100 000 operations
  • Main function
    Relay
  • Rated current
    8A (250Vac; AC-1) 8A (30Vdc; DC-1) 0.6A (110Vdc; DC-1) 0.3A (220Vdc; DC-1)
  • Control Voltage (DC)
    48Vdc
  • Mechanical durability (at no load)
    10 000 000 operations
  • Net Width (mm)
    29 mm
  • Product series / family name
    40 series
  • Connection type
    Solder pin
  • Degree of protection
    RT II
  • Contacts coating
    AgNi (Silver Nickel)
  • Rated power
    750VA (230Vac; AC-15) 2000VA (250Vac; AC-1) 0.65W
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Power consumption
    0.65 W
  • Net Height (mm)
    25 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 40.52.9.048.0000 Specs

40.52.9.048.0000 Finder - 40 Series - Catalogue.pdf
