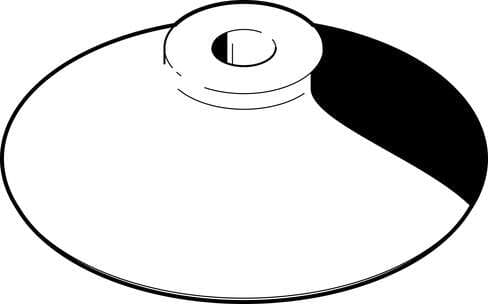

526007 Festo Vacuum Cups

Festo 526007 vacuum suction cup ESV-50-BT Wearing part, easily replaceable Height compensator for suction-cup holder: 10 mm, Min. workpiece radius: 40 mm, suction cup diameter: 50 mm, suction cup volume: 17,6 cm3, Assembly position: Any
Festo

Part#:526007

Manufacturer:Festo

Alt. Part#:ESV-50-BT

Product Lifecycle:Active

Get a quick Quote!

vacuum suction cup ESV-50-BT Wearing part, easily replaceable Height compensator for suction-cup holder: 10 mm, Min. workpiece radius: 40 mm, suction cup diameter: 50 mm, suction cup volume: 17,6 cm3, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Vacuum Cups that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 526007 Festo price in the box on the right side or send a quick quote.

Product Details

  • Type code
    ESV
  • Nominal operating pressure
    -0.7 bar
  • Lateral force at nominal operating pressure
    39 N
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Suction cup diameter
    50 mm
  • Symbol
    00991485
  • Ambient temperature
    -10 °C ... 80 °C
  • Type of mounting
    Via vacuum connection
  • Suction cup holder height compensator
    10 mm
  • Mounting position
    Any
  • Operating pressure
    -0.95 bar ... 0 bar
  • Holding force at nominal operating pressure
    100 N
  • Shore hardness
    72 +/- 5
  • Suction cup volume
    17.6 cm³
  • Suction cup shape
    Round bellows, 1.5 convolutions
  • Breakaway force at 70% vacuum
    100 N
  • Color
    Reddish brown
  • Min. workpiece radius
    40 mm
  • Design
    Bellows
  • Operating medium
    Atmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Product weight
    16.2 g
  • Suction cup material
    Vulkollan®

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 526007 Specs

526007 526007 DataSheet.pdf
