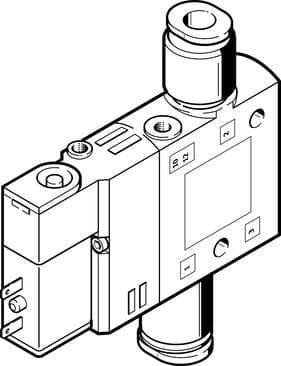

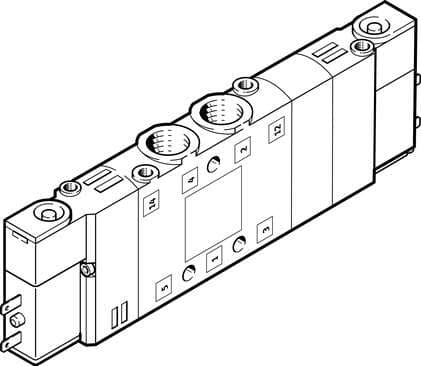

196930 Festo Directional Control Valves

Product Details

• Actuation type
  Electrical
• Operating voltage
  24V DC
• Degree of protection
  IP65 as per IEC 60529
• Type code
  CPE14
• Pilot pressure
  2.5 bar ... 8 bar
• Duty cycle
  100% in combination with holding current reduction
• Permissible voltage fluctuations
  -15 % / +10 %
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pilot air port 12
  M3
• Pneumatic connection 3
  G1/8
• Valve function
  3/2, closed, monostable
• Width
  14 mm
• Design
  Piston gate valve
• Reset method
  Pneumatic spring
• Sealing principle
  Soft
• Flow direction
  Non-reversible
• Symbol
  00991405
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Product weight
  60 g
Pilot exhaust air port 82
M3
Type of mounting
With through-hole
Housing material
Die-cast aluminum
Nominal width
6 mm
Pilot air supply port
External
Valve position ID
Label holder
Coil characteristics
24 V DC: 1.28 W
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Ambient temperature
-5 °C ... 50 °C
Note on materials
RoHS-compliant
Lap
Overlap
Standard nominal flow rate
900 l/min
Pneumatic working port
G1/8
Mounting position
Any
Type of control
Pilot-controlled
On switching time
16 ms
Max. negative test pulse on 1 signal
900 µs
Temperature of medium
-5 °C ... 50 °C
Electrical connection
2-pin
Pneumatic connection 2
G1/8
Seals material
NBR
Maritime classification
See certificate
Operating pressure
-0.9 bar ... 10 bar
Certification
c UL us - Recognized (OL)
Manual override
Detenting via accessory Non-detenting
Switching time off
27 ms
Max. positive test pulse with 0 signal
1200 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pneumatic connection 1
G1/8

Related documents 196930 Specs
