TL50BLGR2ALS3Q Banner Signal Towers

TL50BLGR2ALS3Q on Powermatic Associates
Banner

Part#:TL50BLGR2ALS3Q

Manufacturer:Banner

Alt. Part#:37892

Product Lifecycle:Active

Get a quick Quote!

TL50BL Tower Light: 2-Color Sealed Loud Pulsed Audible Indicator; Voltage: 12-30 V dc or 24 V ac; Environmental Rating: IP67; Input: Bimodal; Colors: Green steady Red flash; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the TL50BLGR2ALS3Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    204.1164 g
  • Country Of Origin
    MX

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TL50BLGR2ALS3Q Description

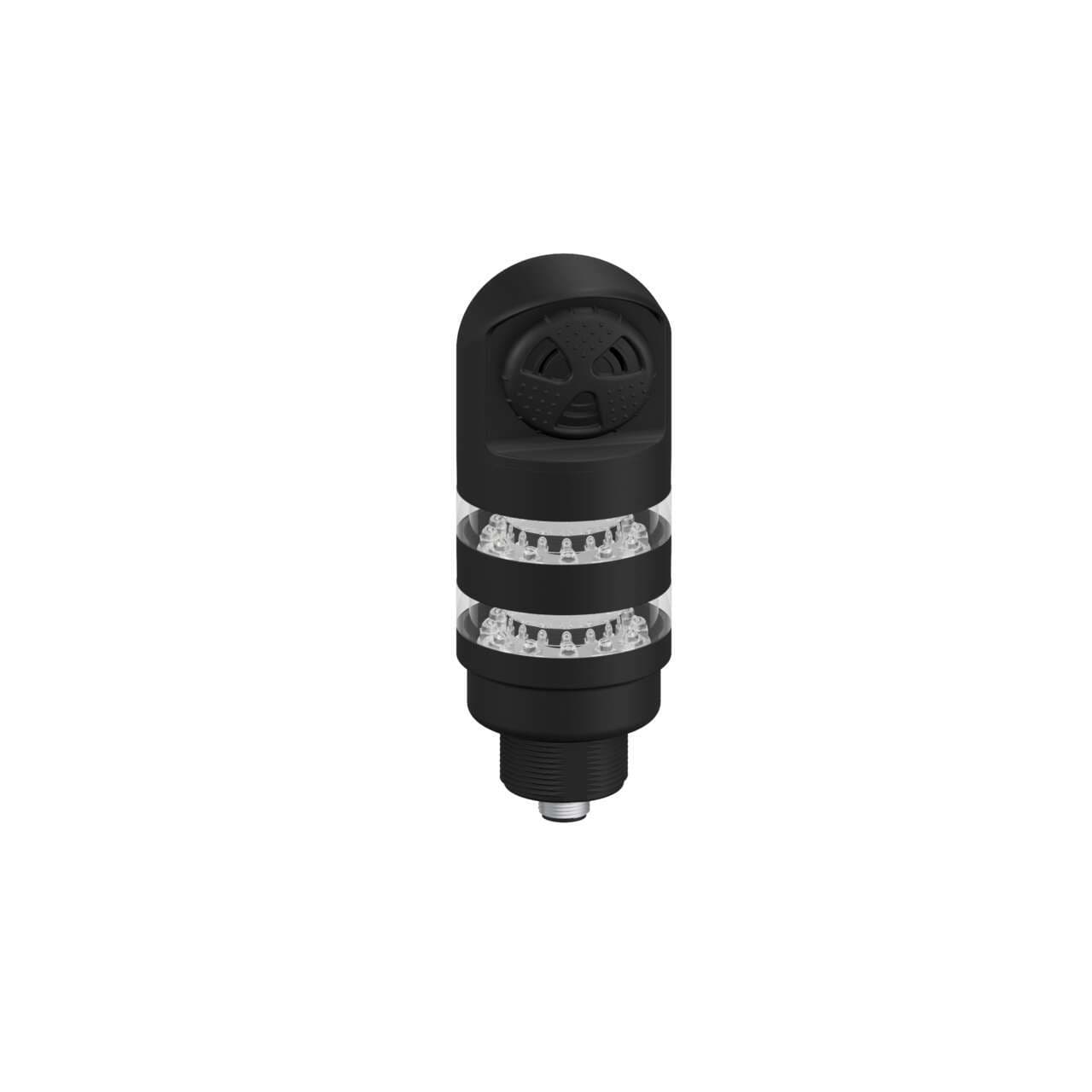

Banner Engineering TL50BLGR2ALS3Q is a tower light designed with a monolithic structure featuring a 1.6Hz pulsed loud sound and 2-tiers 2-color G+R color pattern LED illumination. This sealed audible tower/stack light is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers, ensuring durability. It has a 50mm / 2" diameter and is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The housing is black, and it operates on a supply voltage of 24Vac or 18Vdc-30Vdc (24Vdc nom.). It offers versatile mounting options including surface or base pole with an M30 thread. The TL50BLGR2ALS3Q is designed to operate in ambient air temperatures ranging from -20°C to +50°C and is rated with a degree of protection of IP67 NEMA 13, making it suitable for challenging environments. Its cylindrical shape and current consumption of 125mA, along with 2 x digital inputs for color control and 1 x digital input for alarm input (all supporting 18-30Vdc / 24Vac; PNP/NPN), make it a comprehensive solution for visual and audible signaling in automation applications.

Related documents TL50BLGR2ALS3Q Specs

TL50BLGR2ALS3Q 159857.pdf

Manufacturer warranty

$256.00

Request a quote, and we will send availability within minutes.

Select Qty:

$256.00

$256.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
