SLLCR23-770-S Banner Safety Light Curtains

SLLCR23-770-S on Powermatic Associates
Banner

Part#:SLLCR23-770-S

Manufacturer:Banner

Alt. Part#:808996

Product Lifecycle:Active

Get a quick Quote!

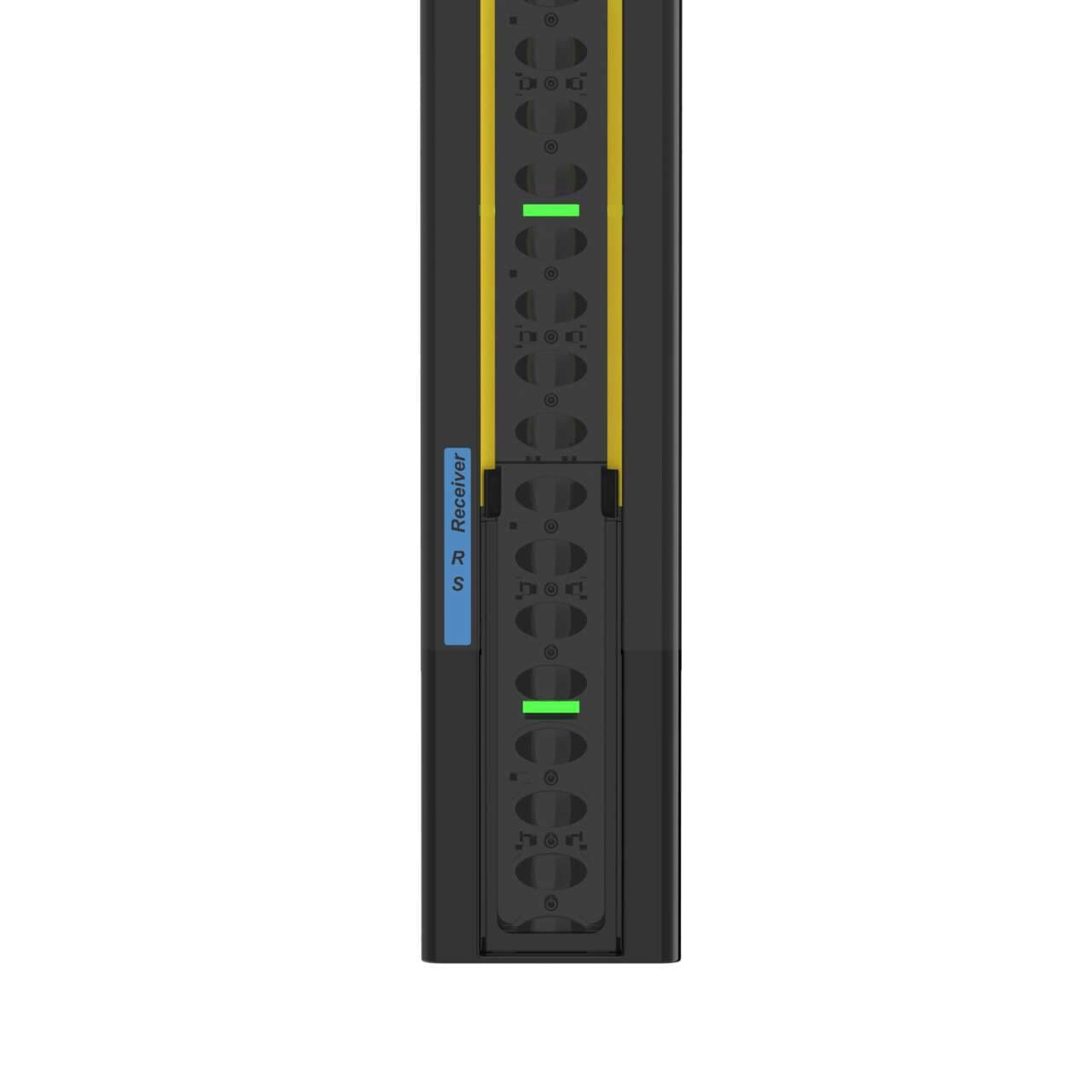

EZ-SCREEN LS Cascade, Receiver; Resolution: 23 mm; Range: 12 m (40 ft); Defined Area: 770 mm (30.3 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLLCR23-770-S Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1925.49804 g
  • Country Of Origin
    MX
  • Feature: Integral Muting
    No
  • Feature: End-to-End Sensing
    Yes
  • Feature: ESD Safe
    No
  • Trip/Latch Output
    Trip
  • Feature: Cascade
    Yes
  • Supply Current
    112 mA Typical
  • Test Input
    No
  • OSSD Rating
    24 V dc at 0.5 A each
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Fault Output
    Yes
  • Operating Distance (m)
    0.1 - 12
  • Fixed Blanking
    Yes
  • Defined Area Height (mm)
    770
  • Dimensions WxD (mm)
    36 x 45
  • Connector Type
    Removable Disconnect
  • Overall Length (mm)
    774
  • External Monitoring Device
    1 Channel
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Safety Level
    Type 4
  • Primary Housing Material
    Aluminum
  • Auxiliary Output
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Receiver
  • Short Protection
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • Resolution (mm)
    23
  • Scan Code
    Selectable
  • Electrical Safety Class
    III
  • SIL Rating
    SIL3; CL3
  • Reduced Resolution
    No
  • Recovery Time
    59 / 199
  • PL Rating
    Ple
  • Operating Temperature
    -20 to +55 deg. C; RH 95%
  • Operating Voltage
    24 V dc +/- 15%
  • IP Rating
    IP65; IP67
  • Housing Finish
    Yellow Polyester

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLLCR23-770-S Description

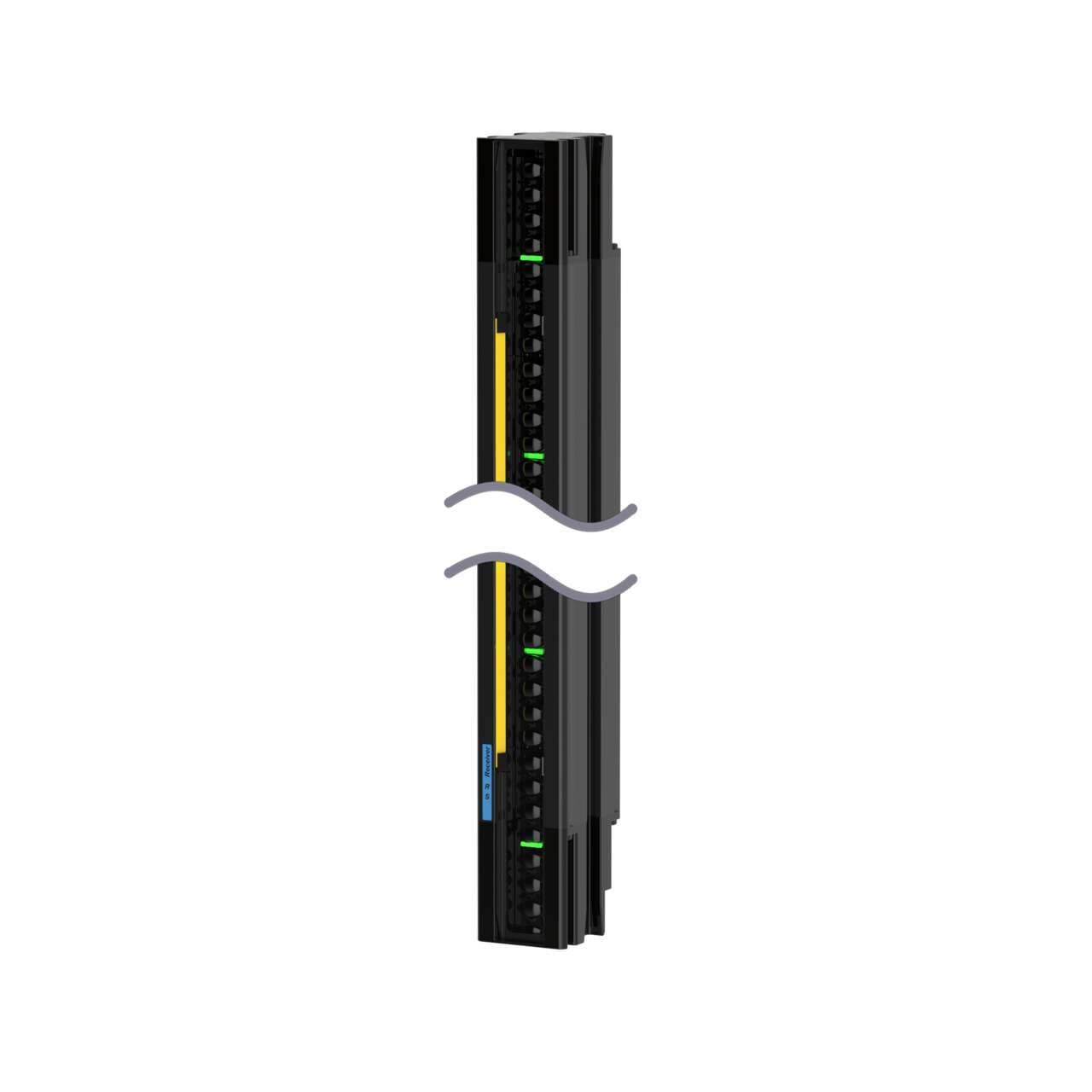

Banner Engineering SLLCR23-770-S is a safety light curtain from the LS-S series type 4 safety light curtains, designed with a cascadable feature. This part functions as a safety light screen/curtain, specifically as a receiver alone, and is constructed with an aluminium housing, acrylic lens, and zinc end caps. It features an Integral Removable Disconnect (RD) for its connection type. The dimensions include a 770mm protective height, with a net width of 36 mm, a net height of 774 mm, and a net depth of 45 mm. The housing is colored yellow, and it operates on a 24Vdc supply voltage. It is designed to work within an ambient air temperature range of -20 to +55 °C and offers a degree of protection rated at IP65 and IP67. The light curtain has a 23mm beam spacing/pitch, with digital outputs comprising 2 x 24Vdc, 500mA sourcing, redundant OSSD solid-state outputs, and 1 x 24Vdc, 100mA sourcing/PNP transistor (CSSI status output). It boasts a sensing distance ranging from 10cm to 12m, utilizes infrared (IR) light with a wavelength of 850 nm, and has a response time of 14.2ms / 0.0142 s. The resolution is set at 23mm for hand detection.

Related documents SLLCR23-770-S Specs

SLLCR23-770-S 189856.pdf
