MQDEC3-515SS Banner Cordsets

Name: MQDEC3-515SS
Brand: Banner
Price: 61 USD
Availability: BackOrder

Part#:MQDEC3-515SS

Manufacturer:Banner

Alt. Part#:804489

Product Lifecycle:Active

Get a quick Quote!

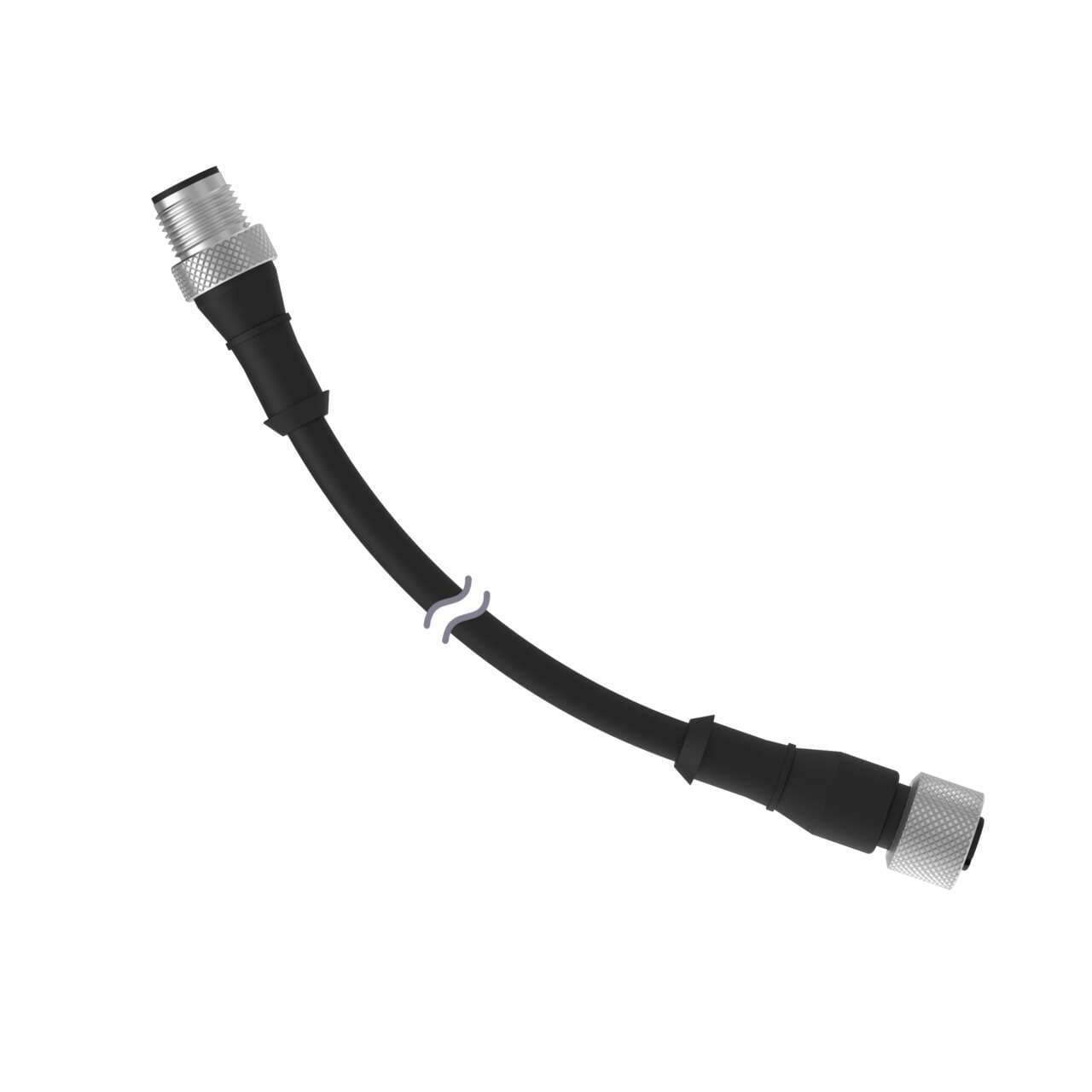

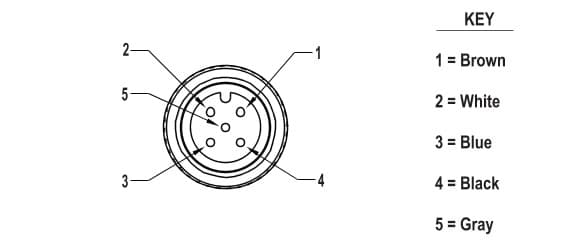

Cordset: Double Ended M12; 5-pin Straight Male; 5-pin Straight Female; 4.58 m 5x22 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nuts

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQDEC3-515SS Banner price in the box on the right side or send a quick quote.

Product Details

Weight
252.9228992 g
Country Of Origin
TW
Feature: Hazardous Area
No
Oil/Grease Resistant
No
Secondary AWG
22
Secondary Gender
Female
Secondary Number of Conductors
5
Secondary Coupling Method
M12 Single Key
Secondary Connector Type
EURO
Secondary Orientation
Straight
Primary AWG
22
Primary Number of Conductors
5
Primary Orientation
Straight
Primary Gender
Male
Voltage Rating (V)
250 V ac/dc
Primary Coupling Method
M12 Single Key
Primary Connector Type
EURO
Minimum Temp. (°C)
-40
IP Rating
IP67
Coupling Material/Color
Nickel Plated Brass

Current Rating (A)

4.0

Maximum Temp. (°C)

105

Shield Type

Coupling

Connector Body Material/Color

PUR Black

Shield/No Shield

Shield

Trunk Length (m)

No Trunk

Outside Cable Diameter (mm)

5.59

Cable Jacket Color

Black

Cordset Length (m)

4.58

Cable Jacket Material

PVC

Number of Connectors

Number of Contacts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MQDEC3-515SS Description

Banner Engineering MQDEC3-515SS is a pre-assembled cable/cordset designed for various automation applications. It features a shielded, double-ended design with a 5.59mm diameter cable. This product is equipped with a 5-pin Euro-style M12 male connector and a 5-pin Euro-style M12 female connector, ensuring compatibility with a wide range of devices. The cable operates effectively within an ambient air temperature range of -40 to +105°C. It offers a degree of protection rated at IP67, making it suitable for environments where dust and water resistance are necessary. The connectors' coupling nut is made from chrome-plated brass, and the cable sheathing is PVC, colored black. The MQDEC3-515SS has a length of 4.58 meters and is rated for a voltage of 250Vac.
