MQDEC2-450RA Banner Cordsets
Part#:MQDEC2-450RA
Manufacturer:Banner
Alt. Part#:91263
Product Lifecycle:Active
Get a quick Quote!

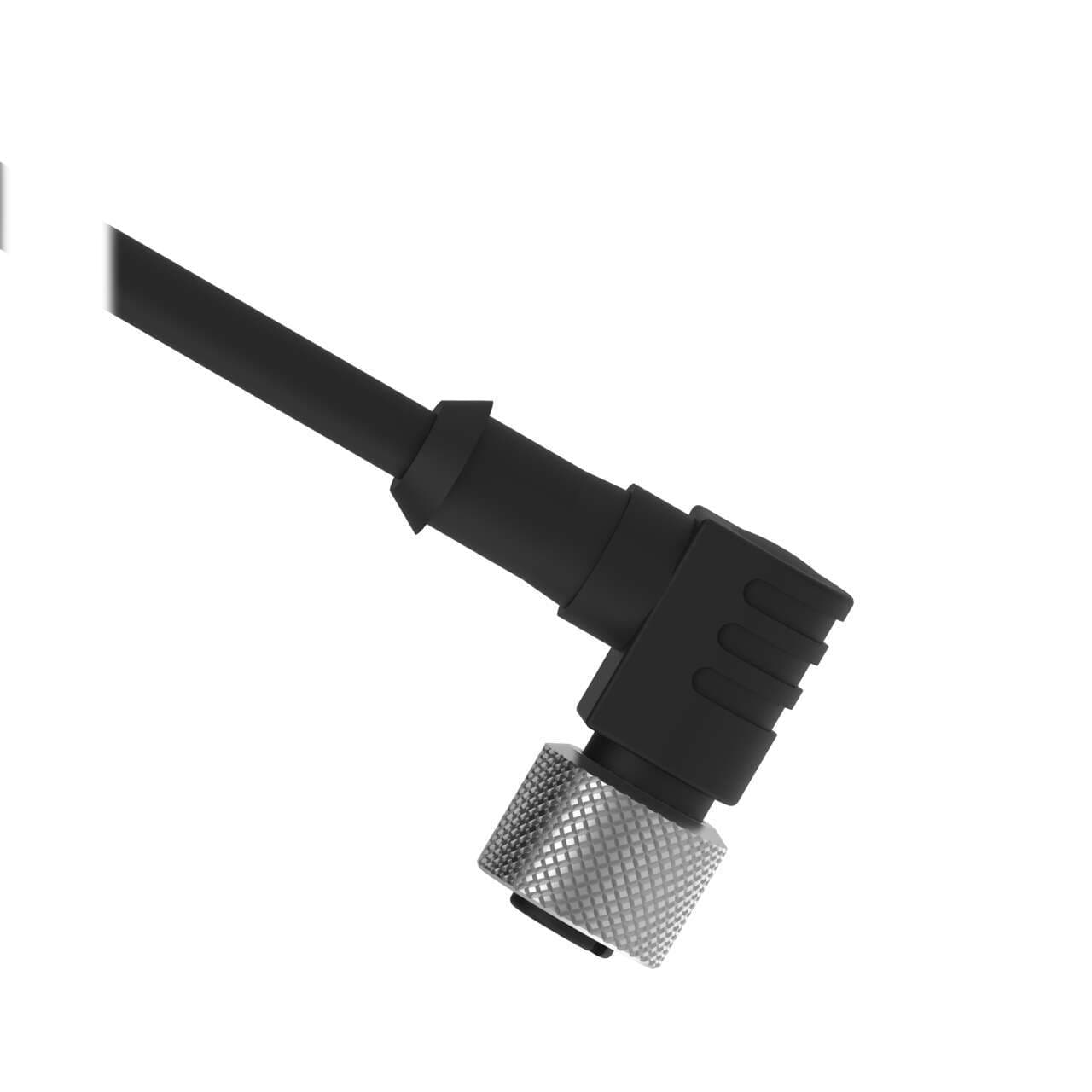

Cordset: Single Ended M12; 4-pin Right-Angle Female; 15.24 m 4x22 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MQDEC2-450RA Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 544.3104 g
- Country Of Origin TW
- Primary AWG 22
- Secondary Connector Type Flying Leads
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Primary Orientation Right Angle
- Primary Number of Conductors 4
- Primary Gender Female
- Primary Coupling Method M12 Single Key
- Primary Connector Type EURO
- IP Rating IP67
- Coupling Material/Color Nickel Plated Brass
- Minimum Temp. (°C) -40
- Voltage Rating (V) 250 V ac/dc
- Shield Type Open
- Current Rating (A) 4.0
- Maximum Temp. (°C) 105
- Number of Contacts 5
- Cable Jacket Material PVC
- Cable Jacket Color Black
- Outside Cable Diameter (mm) 5.2
- Cordset Length (m) 15.24
- Number of Connectors 1
- Trunk Length (m) No Trunk
- Shield/No Shield Shield
- Connector Body Material/Color PUR Black
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
MQDEC2-450RA Description
Banner Engineering MQDEC2-450RA is a pre-assembled cable/cordset designed for various automation applications. It features a 4-pin Euro-style M12 female angled connector with bare end flying leads, ensuring compatibility with a wide range of devices. The cable has a diameter of 5.2mm and is encased in black PVC sheathing, providing durability and protection. With a length of 50ft (15.25m), it offers ample reach for installations. The MQDEC2-450RA operates effectively within an ambient air temperature range of -40 to +105°C and is rated for 250Vac. It boasts a shield single-ended design and a degree of protection rated at IP67, making it suitable for challenging environments. The coupling nut is made from chrome-plated brass, enhancing its physical resilience.
Related documents MQDEC2-450RA Specs
