Banner

Part#:MQDEC-412SR

Manufacturer:Banner

Alt. Part#:47629

Product Lifecycle:Active

Get a quick Quote!

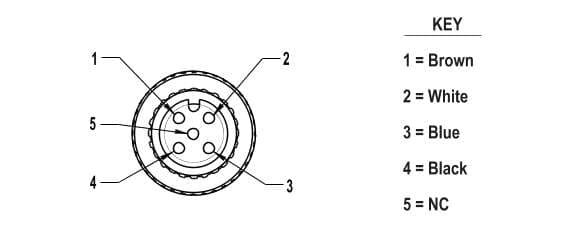

Cordset: Double Ended M12; 4-pin Right-Angle Female; 4-pin Straight Male; 3.66 m 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nuts

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQDEC-412SR Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    158.7572 g
  • Country Of Origin
    US
  • Secondary AWG
    20
  • Secondary Orientation
    Straight
  • Feature: Hazardous Area
    No
  • Oil/Grease Resistant
    No
  • Secondary Gender
    Male
  • Secondary Coupling Method
    M12 Single Key
  • Secondary Number of Conductors
    2
  • Secondary Connector Type
    EURO
  • Primary AWG
    20
  • Primary Orientation
    Right Angle
  • Primary Number of Conductors
    5
  • Primary Connector Type
    EURO
  • Primary Gender
    Female
  • Primary Coupling Method
    M12 Single Key
  • IP Rating
    IP67
  • Minimum Temp. (°C)
    -40
  • Voltage Rating (V)
    250 V ac/dc
  • Trunk Length (m)
    No Trunk
  • Shield/No Shield
    No Shield
  • Current Rating (A)
    4.0
  • Maximum Temp. (°C)
    105
  • Coupling Material/Color
    Nickel Plated Brass
  • Cordset Length (m)
    3.66
  • Connector Body Material/Color
    PUR Black
  • Outside Cable Diameter (mm)
    5.2
  • Cable Jacket Color
    Black
  • Cable Jacket Material
    PVC
  • Number of Connectors
    2
  • Number of Contacts
    4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MQDEC-412SR Description

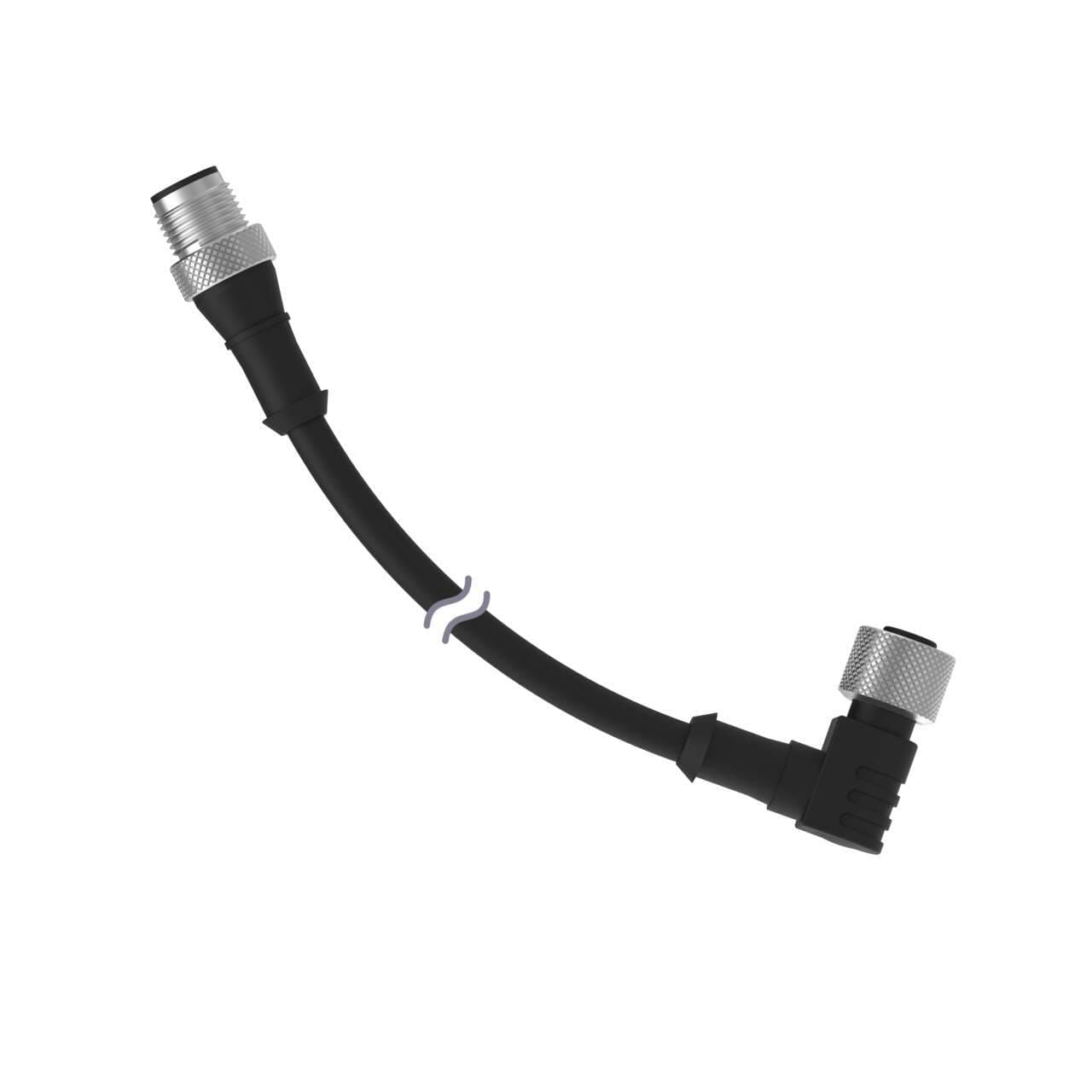

Banner Engineering MQDEC-412SR is a pre-assembled cable/cordset designed for various automation applications. It features a double-ended design with a 5.2mm diameter PVC cable and black sheathing. The cable is equipped with a 5-pin Euro-style M12 female right-angled connector and a 4-pin Euro-style M12 male connector, both featuring chrome-plated brass coupling nuts. This product is rated for operation in ambient air temperatures ranging from -40 to +105 degrees Celsius and offers a degree of protection of IP67, making it suitable for use in environments requiring dust and water resistance. The MQDEC-412SR has a length of 3.7 meters and is rated for a voltage of 250Vac.
