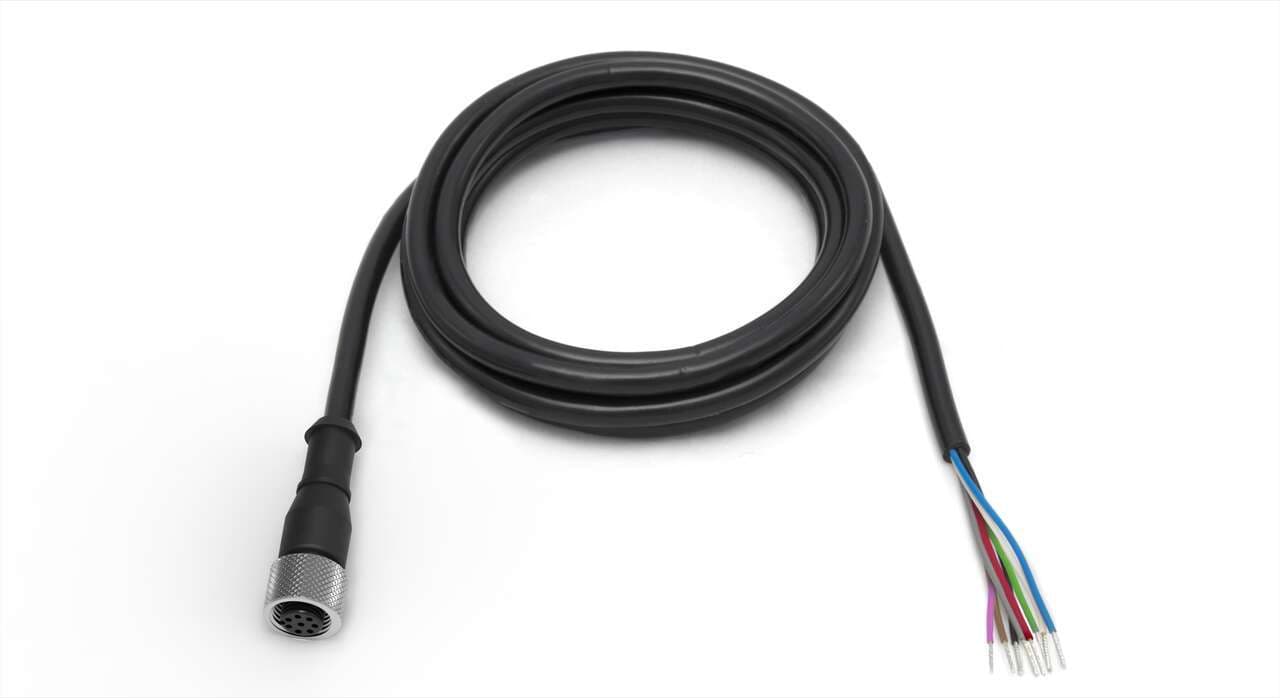

Name: MQDC1-8200
Brand: Banner
Price: 290 USD
Availability: BackOrder

SSM1A130BD

Schneider Electric SSM1A130BD is a solid state relay (SSR) within the SSM sub-range, designed to facilitate solid state/static relay functions. It operates with a control voltage (DC) range of 4-32 Vdc and can handle a rated current of 30 A. The relay is suitable for applications requiring a rated voltage (AC) from phase-to-neutral within the range of 24-280 V.

Schneider Electric

1

LC1D95M7

Schneider Electric LC1D95M7 is a magnetic contactor from the Deca sub-range, featuring screw connections and three poles (3P; 3NO). It has a rated current of 125A (AC-1) and 95A (440Vac; AC-3), with a mounting mode designed for DIN rail installation. The net width of the contactor is 85 mm, and it offers a degree of protection rated at IP20. The control voltage (AC) ranges from 176-242Vac (220Vac nom.; 50Hz; 0.8...1.1 x Uc) to 187-242Vac (220Vac nom.; 60Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 1000 V. It includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 8 kV. This contactor is capable of handling rated active power ranging from 25kW (220-230Vac; AC-3) to 55kW (500Vac; AC-3), with specific ratings for various voltages up to 1000Vac. It also supports rated power (HP) for motors from 7.5HP (115Vac; single-phase) to 60HP (575-600Vac; 3-phase), under UL/CSA standards. The mechanical durability of the LC1D95M7 is rated at 4,000,000 operations, and its electrical durability (with load) is rated at 1,200,000 operations. The rated voltage (AC) for phase-to-phase connections is 1000 V.

Schneider Electric

17

M9F43303

Schneider Electric M9F43303 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed with a 3-pole configuration. It has a rated current of 3A and features a rated insulation voltage (Ui) of 500V. This MCB operates with a rated voltage of 60Vdc and has a rated impulse voltage (Uimp) of 6kV. It offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 60Vdc. The rated voltage for AC applications is 240V phase-to-neutral and 415V phase-to-phase. All three poles are protected, and it is equipped with a D tripping curve.

Schneider Electric

5

MQDC1-506

Cordset: Single Ended A-Code M12; 5-pin Straight Female Connector; 2 m (6.56 ft) Black PVC Jacket; Nickel-Plated Brass Coupling Nut

Banner

184

S29371

Square D by Schneider Electric S29371 is a locking device designed for fixed OFF or ON locking. It functions as a padlocking device, ensuring secure locking capabilities. The dimensions of this part are a net width of 60 mm, a net height of 21 mm, and a net depth of 59 mm.

Schneider Electric

5

UBC10.241

PULS UBC10.241 is an Uninterruptible Power Supply (UPS) control module within the U-series, featuring a built-in battery with a 50% power reserve and a green status LED. This module is housed in aluminium and utilizes spring-clamp connections for installation. It measures W123mm x H124mm x D119mm and operates on a supply voltage range of 22.5Vdc to 30Vdc, with a nominal 24Vdc. The rated current is 10A at 22.5Vdc and can reach up to 15A in buffer mode for less than 5 seconds at full output voltage. It supports DIN rail mounting and can operate in ambient air temperatures ranging from 0 to +40°C. The current consumption is 1.1A at a 24Vdc input, and it is designed for DC networks. Visual position indicators include Ready, Buffering, Inhibit, and Replace Battery. Protection functions include output overvoltage protection with a typical 32Vdc and a maximum of 35Vdc, and overload/short-circuit protection with a minimum of 17.9A and a maximum of 21A at load impedance. It is advised not to use the DC-UPS in parallel to increase output power, but paralleling two units for 1+1 redundancy is possible for higher system reliability. The output voltage is regulated at 22.5Vdc in buffer mode with a 23Vdc turn-ON. The efficiency is rated at 0.978 with a 24Vdc input, and the rated power is 360W at 24Vdc and 240W/360W in buffer mode. Power dissipation/losses are 2.9W with a 24Vdc input at 0A output current and 5.5W at 10A output current. Ripple is maintained at 20mVpp across a frequency range of 20Hz to 20MHz at 50Ω. The electrical durability is rated at 137400 hours at 40°C with a 10A output and 24Vdc input, equivalent to 15 years or 131400 hours at both 40°C with a 5A output and 25°C with a 10A output.

Puls

1

EL6910

EtherCAT Terminal communication interface, TwinSAFE Logic

Beckhoff

47

KG5067

Capacitive sensor, Reliable level detection of conductive media, Electrical design: PNP/NPN; (Automatic load detection PNP/NPN), Output function: normally open / closed; (selectable), Sensing range [mm]: 8, Communication interface: IO-Link, Housing: Threa

ifm Electronic

224
