MQDC-830 Banner Cordsets
Part#:MQDC-830
Manufacturer:Banner
Alt. Part#:57595
Product Lifecycle:Active
Get a quick Quote!

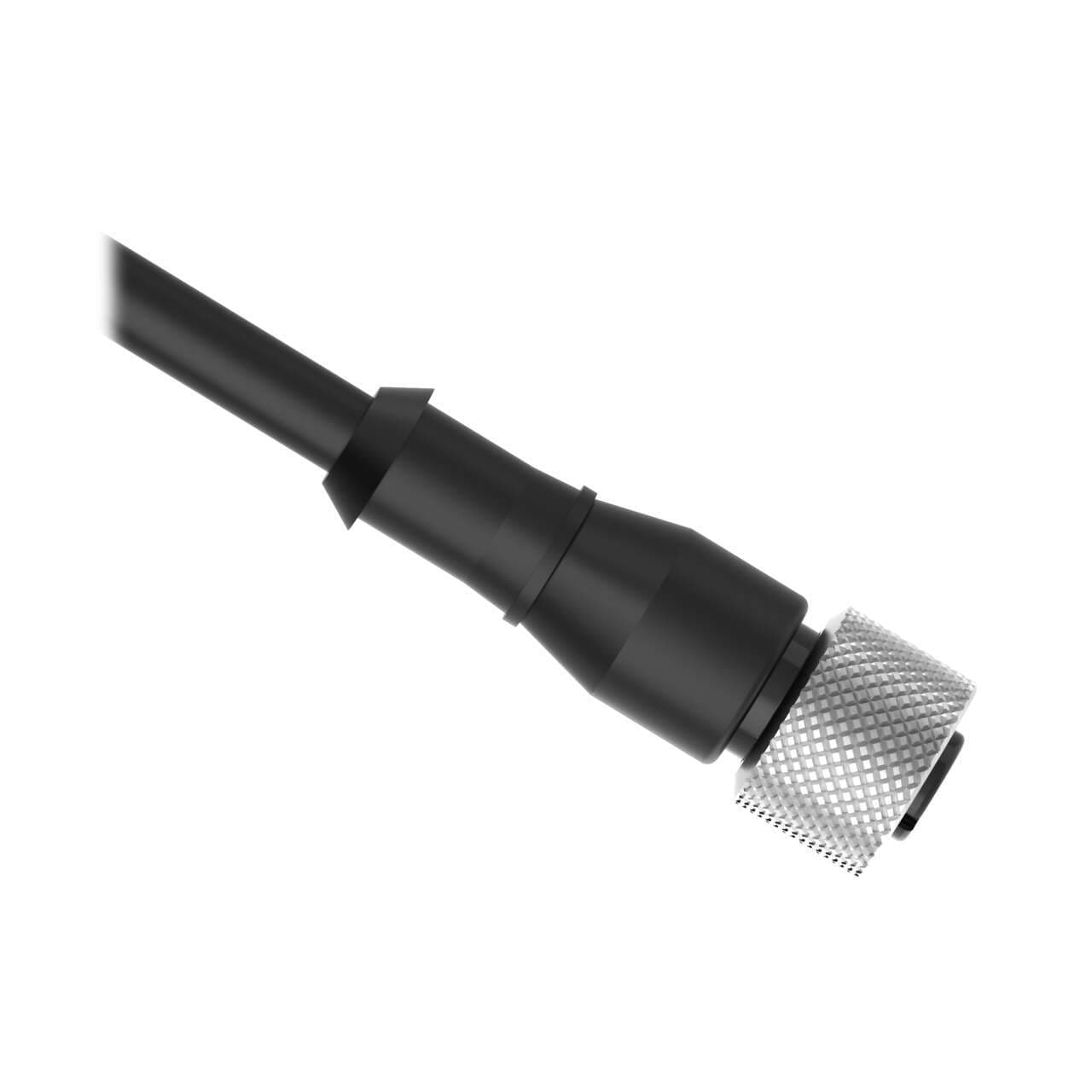

Cordset: Single Ended A-Code M12; 8-pin Straight Female Connector with Shield; 9 m (29.52 ft) Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MQDC-830 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 480.80752 g
- Country Of Origin US
- Oil/Grease Resistant No
- Primary AWG 24
- Feature: Hazardous Area No
- Secondary Connector Type Flying Leads
- Primary Orientation Straight
- Primary Gender Female
- Primary Number of Conductors 7
- Primary Coupling Method M12 Single Key
- IP Rating IP67
- Primary Connector Type EURO
- Voltage Rating (V) 75 V ac/dc
- Minimum Temp. (°C) -40
- Current Rating (A) 2.0
- Maximum Temp. (°C) 105
- Coupling Material/Color Nickel Plated Brass
- Shield Type Pin
- Cable Jacket Color Black
- Cable Jacket Material PVC
- Number of Connectors 1
- Shield/No Shield Shield
- Trunk Length (m) No Trunk
- Cordset Length (m) 9.14
- Outside Cable Diameter (mm) 5.6
- Connector Body Material/Color PUR Black
- Number of Contacts 8
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
MQDC-830 Description
Banner Engineering MQDC-830 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended shielded design with a 5.6mm diameter PVC cable and a chrome-plated brass coupling nut. This cable is equipped with an 8-pin Euro-style M12 female connector and bare end flying leads, ensuring compatibility with a wide range of devices. It operates effectively within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for challenging environments. The MQDC-830 has a rated voltage of 75Vdc and comes in black sheathing. Its length is 30ft (9m), providing ample reach for various installation needs.
