MQDC-4150 Banner Cordsets

MQDC-4150 on Powermatic Associates
Banner

Part#:MQDC-4150

Manufacturer:Banner

Alt. Part#:85547

Product Lifecycle:Active

Get a quick Quote!

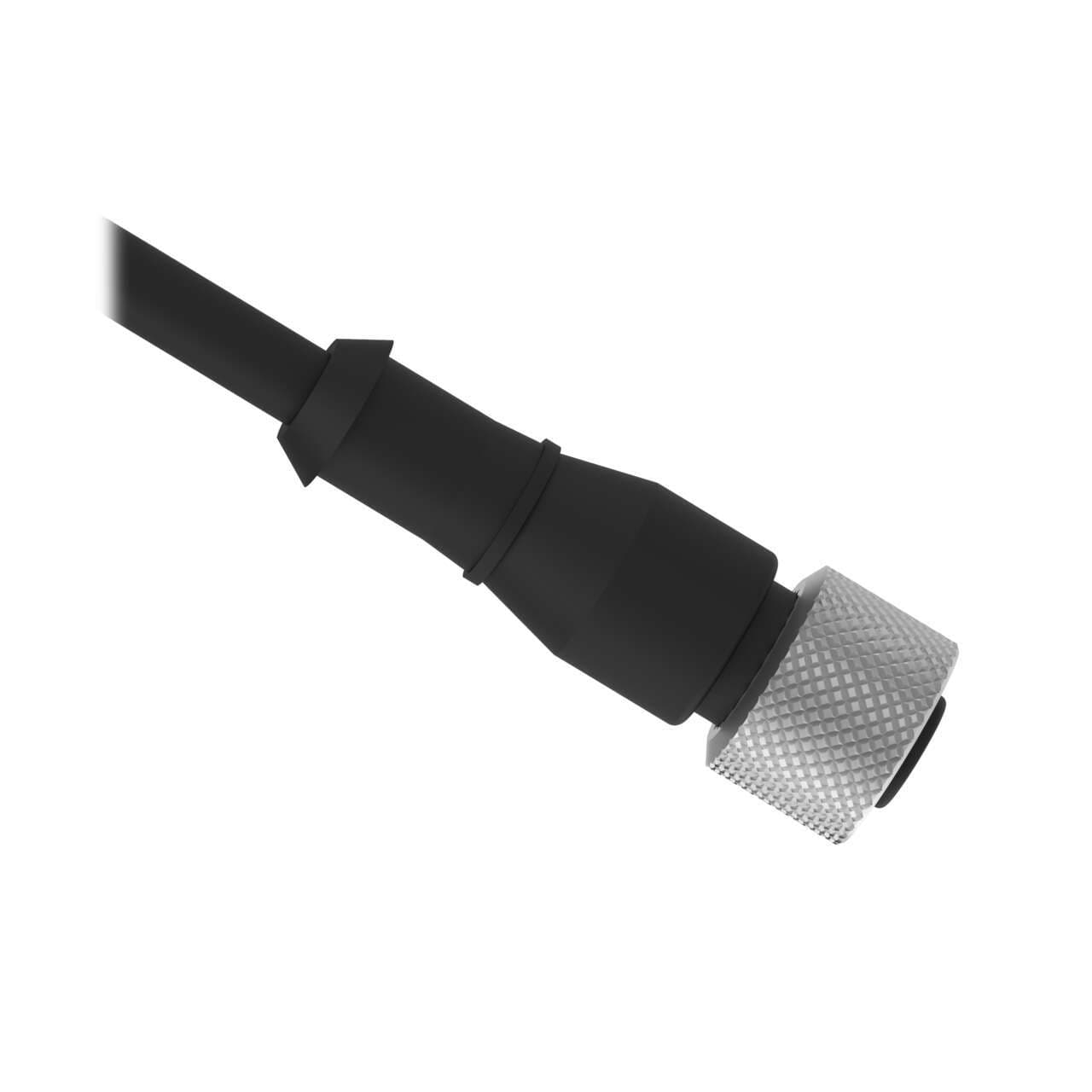

Cordset: Single Ended M12; 4-pin Straight Female; 45.7 m 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQDC-4150 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1859.7272 g
  • Country Of Origin
    US
  • Feature: Hazardous Area
    No
  • Oil/Grease Resistant
    No
  • Secondary Connector Type
    Flying Leads
  • Primary AWG
    22
  • Primary Number of Conductors
    4
  • Primary Gender
    Female
  • Primary Orientation
    Straight
  • Primary Coupling Method
    M12 Single Key
  • Primary Connector Type
    EURO
  • Minimum Temp. (°C)
    -40
  • IP Rating
    IP67
  • Voltage Rating (V)
    250 V ac/dc
  • Current Rating (A)
    4.0
  • Maximum Temp. (°C)
    105
  • Coupling Material/Color
    Nickel Plated Brass
  • Connector Body Material/Color
    PUR Black
  • Cable Jacket Material
    PVC
  • Cable Jacket Color
    Black
  • Number of Connectors
    1
  • Trunk Length (m)
    No Trunk
  • Cordset Length (m)
    45.7
  • Shield/No Shield
    No Shield
  • Number of Contacts
    4
  • Outside Cable Diameter (mm)
    5.2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MQDC-4150 Description

Banner Engineering MQDC-4150 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.2mm diameter PVC cable and a 4-pin Euro-style M12 female connector with bare end flying leads. The cable is equipped with a nickel-plated brass coupling nut and is protected by black sheathing. It offers an ambient air temperature operation range of -40 to +105°C and is rated for 250Vac. With a length of 150ft (45.7m) and a degree of protection of IP67, this cable is designed to meet the connectivity needs in diverse environments.

Related documents MQDC-4150 Specs

MQDC-4150 223455.pdf

Manufacturer warranty

$152.00

Request a quote, and we will send availability within minutes.

Select Qty:

$152.00

$152.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
