LS2HDVAR30-300Q8 Banner Safety Light Curtains

LS2HDVAR30-300Q8 on Powermatic Associates
Banner

Part#:LS2HDVAR30-300Q8

Manufacturer:Banner

Alt. Part#:94435

Product Lifecycle:Active

Get a quick Quote!

EZ-SCREEN Type 2 Heavy Duty V-series; Receiver; Resolution: 30 mm; Range: 4 m (13 ft); Defined Area: 300 mm (11.8 in); Housing: Yellow; 8-pin M12 Integral QD; 2x OSSD; Reset/Test/EDM; Trip Output

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LS2HDVAR30-300Q8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    869.989456 g
  • Country Of Origin
    US
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Trip/Latch Output
    Trip
  • Supply Current
    90 mA max.
  • Feature: End-to-End Sensing
    No
  • Test Input
    Yes
  • OSSD Rating
    24 V dc at 0.5 A each
  • Fault Output
    No
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Auxiliary Output
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Receiver
  • Shock
    10g at 16ms (6000 cycles)
  • Short Protection
    Yes
  • Response Time
    13
  • Scan Code
    None
  • SIL Rating
    SIL2; CL2
  • Electrical Safety Class
    III
  • Resolution (mm)
    30
  • Reduced Resolution
    No
  • Operating Voltage
    24 V dc +/- 20%
  • Recovery Time
    N/A
  • PL Rating
    N/A
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Distance (m)
    0.2 - 4
  • Number of Pins (Receiver/Emitter)
    8
  • IP Rating
    IP65
  • Housing Finish
    Yellow Polyester
  • Fixed Blanking
    No
  • Dimensions WxD (mm)
    33.7 x 34.8
  • Connector Type
    M12
  • Primary Housing Material
    Aluminum
  • External Monitoring Device
    No
  • Overall Length (mm)
    365
  • Safety Level
    Type 2
  • low-profile
    No
  • Effective Aperture Angle
    Type 2 Per IEC 61496-2
  • Defined Area Height (mm)
    300

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LS2HDVAR30-300Q8 Description

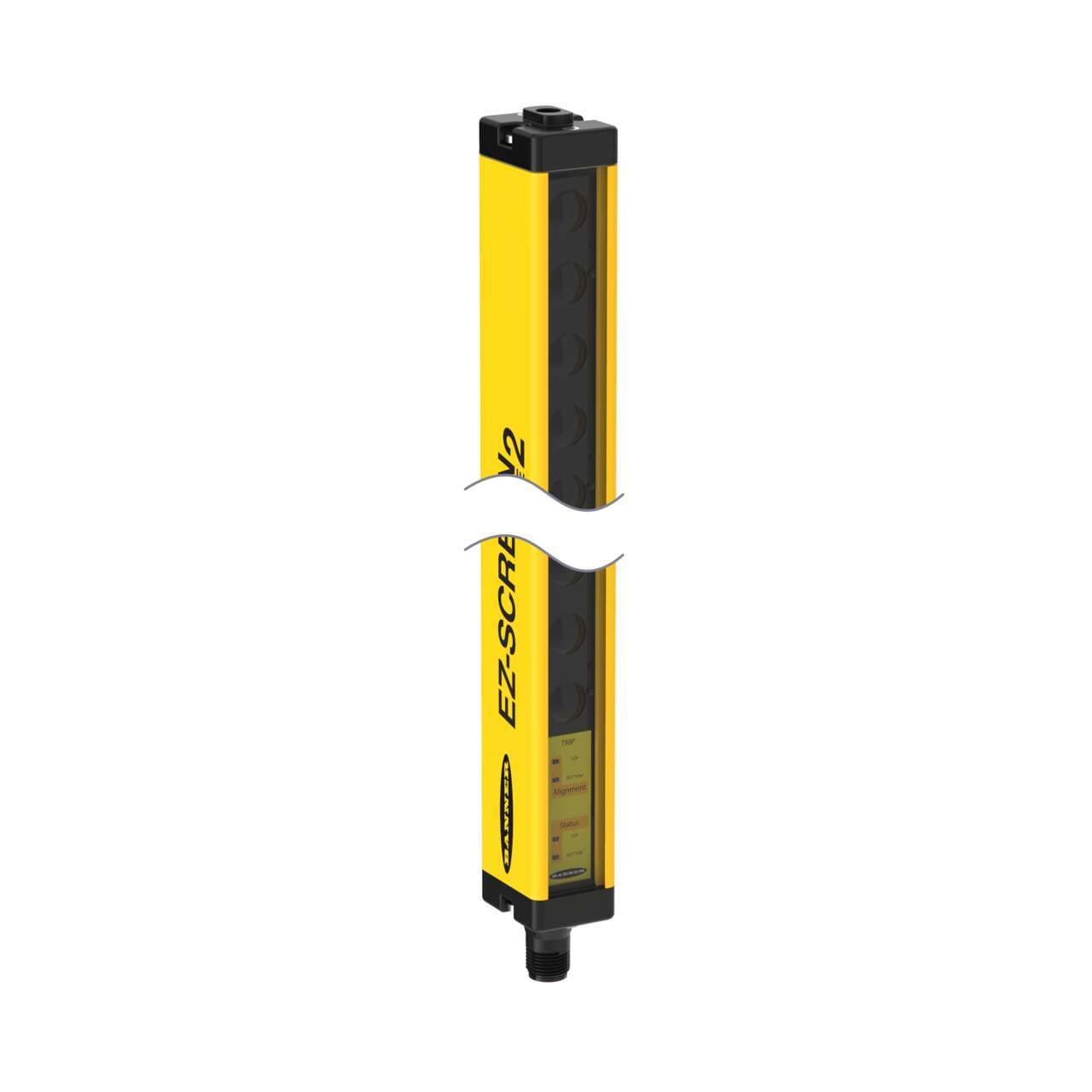

Banner Engineering LS2HDVAR30-300Q8 is a safety light curtain designed as part of the Type 2 heavy-duty V-series light screens. This product functions as a safety light screen/curtain, specifically the receiver alone, and is built with a heavy-duty design. It features a 300mm protective height and comes in a yellow housing. The construction includes an aluminium housing with an acrylic lens and die-cast zinc end caps. It offers a 30mm beam spacing/pitch and is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The LS2HDVAR30-300Q8 operates on a 24Vdc supply voltage, with a net height of 365 mm, a net width of 34 mm, and a net depth of 35 mm. It is designed to operate within an ambient air temperature range of 0 to +55°C. This model offers a degree of protection rated at IP65, ensuring protection against dust ingress and low-pressure water jets from any direction. The sensing distance ranges from 20cm to 4m, and it features 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) with a response time of 13ms / 0.013 s. The resolution is set at 30mm, suitable for hand detection.

Related documents LS2HDVAR30-300Q8 Specs

LS2HDVAR30-300Q8 EZ-SCREEN HD Type 2, LS2HDR 300mm QD-1630955658977.pdf
LS2HDVAR30-300Q8 EZ-SCREEN HD Type 2, LS2HDR 300mm QD-1630955658961.stp
