DEE2R-525D Banner Cordsets

DEE2R-525D on Powermatic Associates
Banner

Part#:DEE2R-525D

Manufacturer:Banner

Alt. Part#:72336

Product Lifecycle:Active

Get a quick Quote!

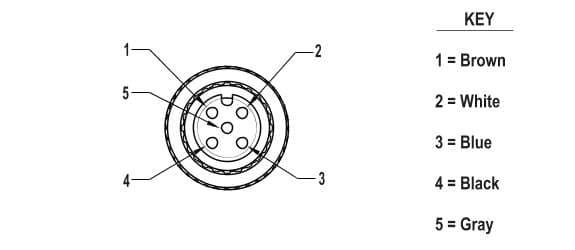

Cordset: Double Ended M12; 5-pin Straight Female; 5-pin Straight Male; 7.62 m 5x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DEE2R-525D Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    344.72992 g
  • Country Of Origin
    TW
  • Secondary AWG
    22
  • Oil/Grease Resistant
    No
  • Feature: Hazardous Area
    No
  • Secondary Number of Conductors
    5
  • Secondary Orientation
    Straight
  • Secondary Gender
    Male
  • Secondary Coupling Method
    M12 Single Key
  • Primary Orientation
    Straight
  • Secondary Connector Type
    EURO
  • Primary Number of Conductors
    5
  • Primary Coupling Method
    M12 Single Key
  • Primary AWG
    22
  • Primary Gender
    Female
  • Primary Connector Type
    EURO
  • IP Rating
    IP67
  • Voltage Rating (V)
    250 V ac/dc
  • Minimum Temp. (°C)
    -40
  • Current Rating (A)
    4.0
  • Maximum Temp. (°C)
    105
  • Coupling Material/Color
    Nickel Plated Brass
  • Cable Jacket Color
    Yellow
  • Outside Cable Diameter (mm)
    5.6
  • Connector Body Material/Color
    PUR Black
  • Shield/No Shield
    No Shield
  • Trunk Length (m)
    No Trunk
  • Cable Jacket Material
    PVC
  • Cordset Length (m)
    7.62
  • Number of Contacts
    5
  • Number of Connectors
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DEE2R-525D Description

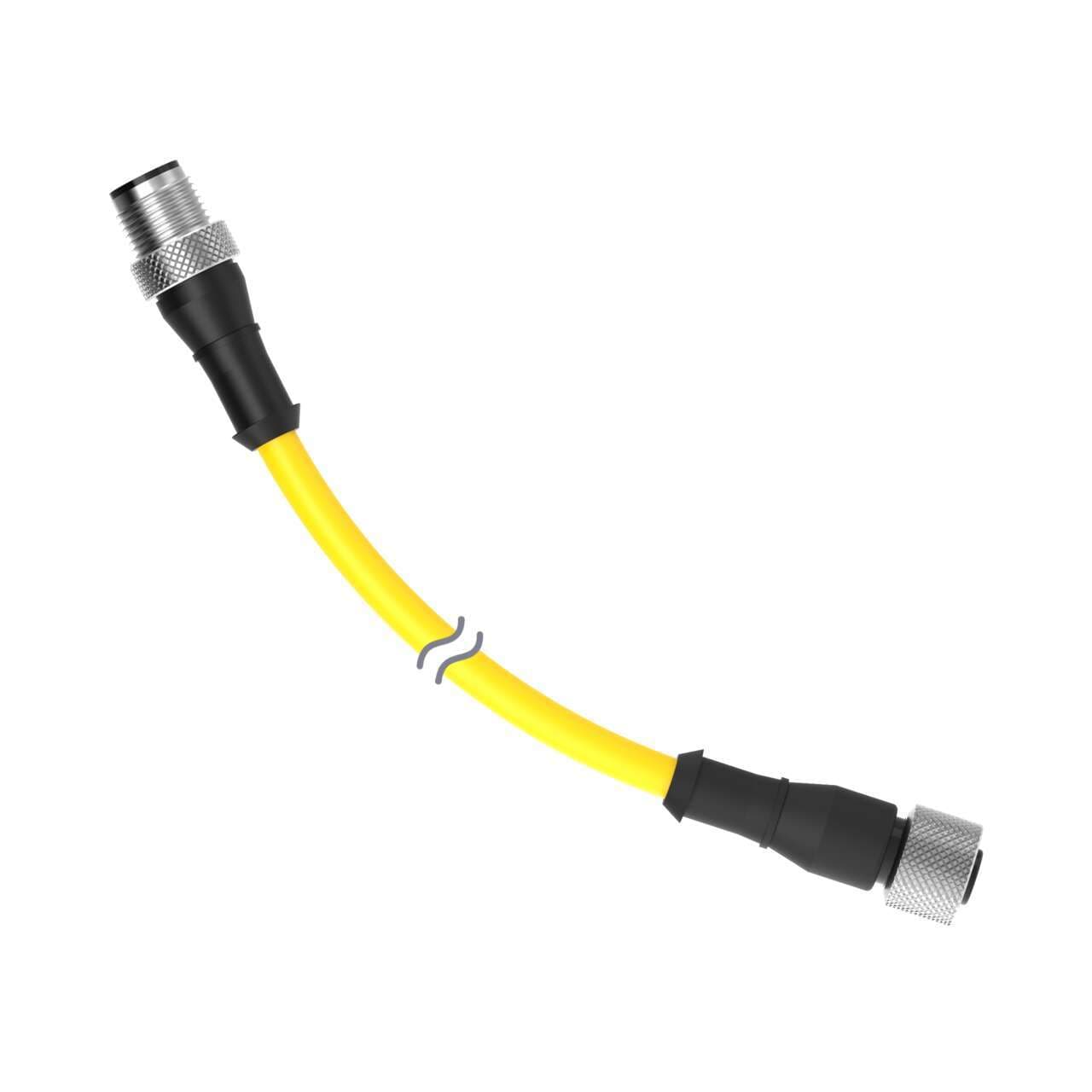

Banner Engineering DEE2R-525D is a pre-assembled, double-ended cable or cordset designed for various automation applications. It features a 5-pin Euro-style M12 female connector on one end and a 5-pin Euro-style M12 male connector on the other. The cable is constructed with a nickel-plated brass coupling nut and PVC sheathing, ensuring durability and resistance to environmental factors. It operates within an ambient air temperature range of -40 to +105 degrees Celsius and offers a degree of protection rated at IP67, making it suitable for use in demanding conditions. The cable has a diameter of 5.6mm and a length of 7.62 meters. Its sheathing is black, and it is rated for a voltage of 250Vac.
